Jyothi Ramesh Jain1*, Shiragambi Hanumantgowda Manohar1, Tapas Kumar Roy2 and Kumudini Belur Satyan1
1Department of Biotechnology, C.P.G.S. Jain University Bangalore, India
2Division of Plant Physiology and Biochemistry, ICAR-Indian Institute of Horticultural Research, Bangalore, India
*Corresponding Author: Jyothi Ramesh Jain, Department of Biotechnology, C.P.G.S. Jain University Bangalore, India.
Received: January 29, 2021; Published: March 09, 2021
Citation: Jyothi Ramesh Jain., et al. “Phenolic Acid and Flavonoid Patterns in Twelve Sechium edule Varieties”. Acta Scientific Agriculture 5.4 (2021): 34-43.
Fruit pulp of twelve Sechium edule Indian accessions were analyzed for phenolic acid and flavonoid constituents. The quantitative evaluation was performed using liquid chromatography mass spectrophotometer method, which showed significant differences in the composition of phenolic acids and flavonoids among accessions. Vanillic acid was the predominant phenolic acid in most of the accessions ranging from 269.28 to 4080.82 μg/g. High amounts of vanillic acid in accession SEC-11 (4080.82 ± 130.92 μg/g) and SEC-06 (1825.46 ± 24.54 μg/g), protocatechuic acid (1736.59 ± 94.90 μg/g) in SEC-09 and syringic acid (1676.97 ± 70.35 μg/g) in SEC-20 was detected respectively. The highest amount of flavonoid present was catechin in the accessions SEC-36 (75.83 ± 4.37 μg/g) followed by SEC-20 (19.43 ± 0.64 μg/g). Data were analyzed using principal component analysis method and the obtained scoring plot showed that all nine accessions had formed one cluster. Discrimination of metabolic profiles of different S. edule accessions using principal component analysis showed that accessions grouping was consistent with the LC-MS results obtained. This method of estimation of metabolites can be successfully employed enabling genetic grouping of S. edule accessions in an effective manner for breeding studies.
Keywords: Sechium edule; Phenolic Acids; Flavonoid; Principal Component Analysis; LCMS
The health promoting benefits in Sechium edule fruits can be attributed to the presence of phytochemicals and large number of plant food derived bioactive compounds belongs to phenolic acid and flavonoid families [1]. Therefore, phenolic acids and flavonoids are two such secondary metabolites, which needs to be investigated. Phenolic acids, which are produced by shikimic acid pathway, are present as free form or are conjugated with sugar residue. They are classified as hydroxycinnamic acids and hydroxybenzoic acids based on the carbon framework. These also arise in plants in form of glycosides or esters with other compounds like sterols, glucosides or alcohols [2]. The cinnamic acid derivatives are sinapic acid, coumaric acid, ferulic acid and caffeic acid and the hydroxybenzoic acids are protocatechuic acid, gallic acid, vanillic acid and syringic acid with a C6-C1 configuration. Phenolic acids are of utmost importance recently due to their protective role against cancer and heart diseases, which may be attributed to their antioxidant activity, reported to be higher than vitamin C and E against reactive oxygen species [3].
On the other hand, flavonoids belong to a family of C6-C3-C6 polyphenol compounds and the subclasses includes flavone, flavonol, flavanone, flavanol, anthocyanin and isoflavone. More than 8000 flavonoids have been identified so far [4] and the number continues to grow. They play a very important role in protecting plants against insect and microbial attack and possess remarkable health promoting effects such as, anti-oxidant [5], anti-microbial [6], anti-cancer [7] activity. They also help in the prevention of osteoporosis [8]. In view of the impact of both phenolic acids and flavonoids on human health, it is pivotal to learn about their concentrations and variations in medicinal plants.
Sechium edule, a lesser-known vegetable crop from the cucurbit family, is cultivated from the pre- Columbian times. The fruits, roots as well as stem has been important elements of the diet of the people throughout the world. The fruits grow best in tropical regions across the world and are indigenous to Mexico and Central America [9]. S. edule displays a wide diversity and produces fruits with different colors, shapes and sizes depending on the cultivar. There has been a decline in the number of accessions in the past. Conservation of such species by orthodox methods has not been possible so far as the seeds of the fruit are recalcitrant and viviparous in nature [10]. Sechium genetic resources have been assessed for characterization of the germplasm but characterization of phenolic acids and flavonoids among different accessions has been limited to studies of role of phenolic acids against melon fly and flavonoids detection in leaves, stem and fruits [11,12]. The studies have shown the presence of different pharmacological components like peroxidases, phenols, alkaloids, flavonoids, saponins and tannins which are potent anticancer compounds (Firdous., et al. 2012; Lombardo-Earl., et al. 2014). No studies have been carried out on S. edule regarding the potential that these might have as a resource for improving this species. As it is diverse in nature, these populations should be evaluated and for hybridization programmes with cultivated types needs to be stated.
In the present study, liquid chromatography coupled with mass spectrometry (LCMS) was used for the quantitative determination of phenolic acids and flavonoids of S. edule fruit extracts of 12 diverse accessions. Since very few species have been explored for its phytochemicals across India, this work will draw attention towards this species and contribute for the potential value and improvement of this underutilized and neglected crop for developing varieties with desired nutrients.
The phenolic acids and flavonoids standards used in the present study were purchased from Sigma Aldrich, USA and these standards were prepared with a range of 1 mg/ml using 80% methanol. Chromatographic grade organic solvents were used for the analysis and Milli-Q (Millipore) purification system was used to obtain purified water for preparing mobile phases and the extracts were filtered through 0.45 μm membrane filters.
Sample preparation and extractionThe place of collection of all the accessions of S. edule collected across India have been represented (Table 1) and the phenotypic variations is depicted in the figure 1. Phenolic acids and flavonoids were extracted from 5 g of S. edule as per protocol described by Weidner., et al. [13], Chen., et al. [14] and Middha., et al. [15] with slight modification.
Figure 1: Picture showing the diversity of fruit size, shape and color for Sechium edule accessions collected from India.
Accession Number |
Place of collection (State) |
District |
SEC-01 |
Sikkim |
Lingzey |
SEC-03 |
Sikkim |
Gangtok |
SEC-05 |
Sikkim |
Ganktok |
SEC-06 |
Assam |
Kamrup |
SEC-09 |
Meghalaya |
Shillong |
SEC-11 |
Manipur |
Senapati |
SEC-13 |
Manipur |
Ukhrul |
SEC-18 |
Manipur |
Imphal east |
SEC-20 |
Mizoram |
Aizawl |
SEC-27 |
Karnataka |
Bangalore |
SEC-31 |
Tamil Nadu |
Ooty |
SEC-36 |
Kerala |
Idukki |
Table 1: S. edule accessions used with code and collection site.
The fruit pulp was homogenized two times using 80% methanol and was centrifuged, the supernatant was collected and made up to 80 ml with 80% methanol. The 20 ml of 80% methanol extract was evaporated in a rotary evaporator at 50°C till the methanol completely evaporates. It is then extracted three times with ethyl acetate. The ethyl acetate layer was then evaporated to dryness at room temperature under vacuum. To the water residue, 2N NaOH (4 ml) was added and allowed to be hydrolyzed overnight at room temperature. After acidification to pH 2 using 2N HCl, the extracts were once again subjected to ethyl acetate extraction. Discarding the aqueous layer, the ethyl acetate layer was further extracted two times with 20 ml of 0.1 N NaHCO3.
The aqueous layer was further acidified to pH 2 with 5 ml 2N HCl and extracted three times with 25 ml ethyl acetate. The ethyl acetate layer was then washed with distilled water till the pH becomes 6.5 to 7. It was then dried completely in rotary evaporator and the residue was dissolved in 1 ml MS grade methanol, filtered through 0.2 μm nylon membrane filter prior to inject in LCMS for quantification of phenolic acids.
The ethyl acetate layer, which carried the flavonoids was washed with water several times till the pH becomes 6.5 to 7. It was then evaporated to complete dryness under vacuum at room temperature. The residue was dissolved in 1 ml MS grade methanol filtered through 0.2μm nylon membrane filter before injecting into LCMS for quantification of flavonoids.
EquipmentsLCMS analysis were carried out using a Waters Acquity UPLC-H class coupled with TQD-MS/MS (Waters Corp, USA), which was equipped with a quaternary pump, degasser and a diode array detector along with temperature control system for analytical column. This was accompanied with an electro spray ionization (ESI) source for phenolic acids and flavonoids quantification. The automatic injection system having a range of (0-10 μL) and the overall system was controlled by Mass lynx software for data collection. The electro spray ionization source was operated in negative ion mode (ES-) to detect parent mass m/z and most abundant fragmented daughters of phenolic acids and flavonoids by MRM method in LC-MS. Calibration curve were obtained by using different concentrations for individual phenolic acids and flavonoids.
Liquid chromatography-Mass spectrometry (LC-MS) conditionsA liquid chromatography separation was performed using analytical column 2.1 X 50 mm UPLC BEH- C18 column (Waters) with 1.7μm particles, safeguarded by a Vanguard BEH C-18 with 1.7μm guard column (Waters). The column was set to 25 °C. Aqueous phase of formic acid (0.1%) + water (A) and organic phase of formic acid (0.2%) + methanol (B) was used as mobile phase. The initial gradient had both the phases in the ratio of 90:10 (A:B) and held for 2.5 minutes. The gradient was then changed to 70:30 at 4.0 min, then the gradient was reduced to 60:40 after 1 min and held for 5.0 min and later brought to 80:20 (A:B) held for 2.0 min. It is then finally returned to the initial gradient 90:10 in 2.0 min held for a 1 min, so as to equilibrate, prior to the next injection. The mobile phase flow rate was maintained at 0.3 mL/min and 4 μl of sample was injected each time for both phenolic acids and flavonoids.
Statistical analysisThe assessment of data obtained was performed using principal component analysis (PCA) by using a multivariate software (Unscrambler X, CAMO, Bangalore, Karnataka, India). All the samples were injected thrice into the LCMS system and the data for the sample content are expressed as mean ± standard deviation. Data collected were analyzed using two-way ANOVA test (GraphPad prism 6.01) representing the significant difference at P < 0.05.
Among the phenolic acids we detected fourteen phenolic acids by LC-MS analysis of fruit extracts from twelve accessions of S. edule. The details of multiple-reaction monitoring of phenolic acid standards is given in the table 2. Chlorogenic acid per dry weight ranged from 0.06 to 0.17 μg/g; ferulic acid ranged from 5.44 to 2543 μg/g; caffeic acid ranged from 0.43 to 27.61 μg/g; gallic acid ranged from 0.46 to 96 μg/g; vanillic acid ranged from 269.28 to 4080.82 μg/g; p-coumaric acid ranged from 50.85 to 1220.81 μg/g; o-coumaric acid ranged from 25.90 to 940.88μg/g; protocatechuic acid ranged from 0.94 to 1736.59 μg/g; gentisic acid ranged from 0.12 to 0.67 μg/g; salicylic acid ranged 0.17 to 1483.22 μg/g; p-hydroxybenzoic acid ranged from 225.07 to 1008.53 μg/g; 2,4 dihydroxybenzoic acid ranged from 0.91 to 5.42 μg/g; t-cinnamic acid ranged from 0.49 to 17.36 μg/g and syringic acid ranged from 388.78 to 1676.97 μg/g (Table 3).
Compound |
Formula/Mass |
Parent m/z |
Cone Voltage |
Daughters |
Collision Energy |
Ion Mode |
Caffeic acid |
180 |
178.90 |
30 |
135.05 |
16 |
ES- |
2, 4 dihydroxybenzoic acid |
154 |
152.90 |
28 |
65.02 |
18 |
ES- |
Chlorogenic acid |
354 |
352.97 |
22 |
191.10 |
18 |
ES- |
Ferulic acid |
194 |
192.90 |
26 |
134.02 |
14 |
ES- |
Gallic acid |
170 |
168.90 |
28 |
125.03 |
12 |
ES- |
Gentisic acid |
154 |
152.90 |
24 |
108.98 |
12 |
ES- |
o-Coumaric acid |
164 |
162.90 |
22 |
119.06 |
12 |
ES- |
p-coumaric acid |
164 |
162.90 |
24 |
119.05 |
14 |
ES- |
p- hydroxybenzoic acid |
138 |
136.90 |
26 |
93.01 |
12 |
ES- |
Protocatechuic acid |
154 |
152.90 |
26 |
109.05 |
16 |
ES- |
Salicylic acid |
138 |
136.90 |
28 |
93.10 |
14 |
ES- |
Syringic acid |
198 |
196.97 |
26 |
182.07 |
10 |
ES- |
t-cinnamic acid |
148 |
146.90 |
26 |
103.05 |
10 |
ES- |
Vanillic acid |
168 |
166.97 |
26 |
108.01 |
20 |
ES- |
Table 2: Phenolic acids MRM details.
Acc No. |
Chl A |
Fer A |
Caf A |
Gal A |
Van A |
p -CA |
o -CA |
Prot A |
Gen A |
Sal A |
p -HBA |
2,4 DHBA |
t-Cin A |
Syr A |
SEC-01 |
0.17 ± 0.07a |
333.99 ± 5.34a |
2.61 ± 0.25a |
96.97 ± 1.60a |
659.51 ± 37.64a |
127.55 ± 3.39al |
97.57 ± 4.04ag |
28.34 ± 0.60a |
0.12 ± 0.04a |
4.99 ± 0.10a |
225.07 ± 1.62a |
0.67 ± 0.13a |
12.23 ± 0.57a |
1303.28 ± 20.10a |
SEC-03 |
0.15 ± 0.03a |
1280.56 ± 44.06b |
5.00 ± 0.42a |
7.73 ± 0.53b |
1719.63 ± 62.19b |
127.55 ± 3.39bij |
145.38 ± 2.22a |
104.46 ± 1.55b |
0.27 ± 0.07 a |
9.81 ± 0.12a |
586.76 ± 1.70b |
0.12 ± 0.05a |
16.20 ± 1.43a |
482.78 ± 13.06b |
SEC-05 |
0.06 ± 0.03a |
5.44 ± 0.63c |
0.43 ± 0.06a |
1.31 ± 0.26bc |
269.28 ± 9.82c |
64.66 ± 2.06c |
25.90 ± 0.22b |
0.94 ± 0.08a |
0.27 ± 0.07 a |
169.99 ± 2.16be |
487.58 ± 8.18c |
0.12 ± 0.05a |
0.49 ± 0.03a |
1470.98 ± 12.06c |
SEC-06 |
0.15 ± 0.03a |
516. 91 ± 6.37d |
12.45 ± 0.61a |
3.56 ± 0.13bd |
1825.46 ± 24.54d |
143.49 ± 3.28ak |
101.67 ± 1.63ag |
852.45 ± 7.85c |
0.23 ± 0.03 a |
9.33 ± 0.53a |
689.07 ± 10.59d |
1.62 ± 0.13a |
5.62 ± 0.28a |
671.95 ± 9.04d |
SEC-09 |
0.15 ± 0.03a |
2543.73 ± 68.17e |
17.92 ± 0.29a |
2.71 ± 0.26be |
594.31 ± 13.09e |
1220.81 ± 25.54d |
940.88 ± 14.94c |
1736.59 ± 94.90d |
0.67 ± 0.13 a |
5.13 ± 0.17a |
788.00 ± 50.88e |
4.63 ± 0.61a |
2.31 ± 0.57 a |
1300.96 ± 13.06a |
SEC-11 |
0.15 ± 0.03a |
908.18 ± 9.07fm |
27.61 ± 1.35a |
5.57 ± 0.80f |
4080.82 ± 130.92f |
166.77 ± 1.15aj |
105.54 ± 2.29ag |
749.54 ± 0.69e |
0.12 ± 0.04 a |
1483.22 ± 14.27c |
792.68 ± 12.88ef |
0.91 ± 0.13a |
8.43 ± 0.86a |
677.17 ± 9.04de |
SEC-13 |
0.13 ± 0.06a |
1081.58 ± 56.53g |
6.62 ± 0.22a |
0.46 ± 0.02g |
1409.72 ± 36.00g |
448.58 ± 6.82e |
330.74 ± 27.86d |
115.46 ± 4.83bf |
0.12 ± 0.04 a |
100.47 ± 1.82df |
648.82 ± 5.18dg |
1.30 ± 0.20a |
17.36 ± 1.72a |
388.78 ± 14.07f |
SEC-18 |
0.15 ± 0.03a |
889.41 ± 7.58hm |
11.66 ± 0.71a |
7.35 ± 0.66h |
2339.45 ± 16.36h |
214.99 ± 4.38jf |
154.20 ± 1.15a |
295.24 ± 5.09g |
0.27 ± 0.07 a |
14.41 ± 0.89a |
1008.53 ± 55.19h |
1.50 ± 0.13a |
5.29 ± 0.57a |
843.71 ± 25.12g |
SEC-20 |
0.15 ± 0.03a |
308.84 ± 1.95i |
10.34 ± 0.35a |
1.00 ± 0.13i |
949.57 ± 73.64i |
685.22 ± 26.60g |
480.60 ± 19.66e |
1094.20 ± 1.55h |
0.27 ± 0.07 a |
4.77 ± 0.21a |
416.97 ± 8.42i |
5.42 ± 0.34a |
3.80 ± 0.57a |
1676.97 ± 70.35h |
SEC-27 |
0.06 ± 0.03a |
308.84 ± 1.95a |
6.57 ± 0.42a |
1.78 ± 0.26j |
491.32 ± 31.09j |
50.85 ± 1.78ch |
35.73 ± 2.01bf |
149.79 ± 2.41bi |
0.12 ± 0.04 a |
112.31 ± 2.04ef |
271.89 ± 3.00a |
1.07 ± 0.20a |
8.10 ± 1.14a |
813.53 ± 55.28gi |
SEC-31 |
0.06 ± 0.03a |
365.10 ± 1.14an |
13.27 ± 0.39a |
0.85 ± 0.26k |
759.66 ± 24.55k |
96.33 ± 3.45cl |
47.57 ± 1.50bg |
878.06 ± 19.06cj |
0.12 ± 0.04 a |
21.02 ± 0.16a |
243.76 ± 3.87a |
1.70 ± 0.06a |
4.13 ± 0.28a |
901.15 ± 8.04gj |
SEC-36 |
0.15 ± 0.03a |
407.53 ± 2.58jn |
3.79 ± 0.64a |
3.48 ± 0.80l |
592.42 ± 19.63el |
192.14 ± 2.21ijk |
126.24 ± 1.45a |
97.38 ± 4.31bk |
0.12 ± 0.04 a |
23.06 ± 0.19a |
332.24 ± 4.11j |
1.90 ± 0.20a |
3.30 ± 0.57a |
487.42 ± 9.04bk |
Max value |
0.17 ± 0.07 |
2543.73 ± 68.17 |
27.61 ± 1.35 |
96.97 ± 1.60 |
4080.82 ± 130.92 |
1220.81 ± 25.54 |
940.88 ± 14.94 |
1736.59 ± 94.90 |
0.67 ± 0.13 |
1483.22 ± 14.27 |
1008.53 ± 55.19 |
5.42 ± 0.34 |
17.36 ± 1.72 |
1676.97 ± 70.35 |
Min value |
0.06 ± 0.03 |
5.44 ± 0.63 |
0.43 ± 0.06 |
0.46 0.02 |
269.28 ± 9.82 |
50.85 1.78 |
25.90 ± 0.22 |
0.94 ± 0.08 |
0.12 ± 0.04 |
4.77 ± 0.21 |
225.07 ± 1.62 |
0.12 ± 0.05 |
0.49 ± 0.03 |
388.78 ± 14.07 |
Table 3: Phenolic acids composition of twelve different accessions from India (μg/g of Dried Material).
*Data are represented as the mean ± Standard deviation (n = 3). Values in the same column that are followed by different superscript letters are significantly different (p < 0.05).
*Abbreviations: ChlA: Chlorogenic Acid, FerA: Ferulic Acid, CafA: Caffeic Acid, GalA: Gallic Acid, VanA: Vanillic Acid, P-CA: p-Coumaric Acid, o-CA: o-Coumaric Acid, ProtA: Protocatechuic Acid, GenA: Gentisic Acid, SalA: Salicylic Acid, p-HBA: p-hydrozybenzoic Acid, 2,4 DHBA: 2,4- Dihydroxy Benzoic Acid, t-CinA: t-cinnamic Acid, SyrA: Syringic Acid.
Majorly all twelve accessions were rich in vanillic acid, syringic acid and p-hydroxybenzoic acid respectively. Syringic acid and hydroxybenzoic acid are abundantly present in fruits and vegetables. They are known for anti-cancer, sedative, anti-proliferative and decongestant properties [16]. Another most important phenolic acid is ferulic acid and p-coumaric acid, which is well known for its anti-microbial, anti-inflammatory, anti-cancer activities, lowers cholesterol, and enhances sperm viability [17,18].
Vanillic acid was predominant in accession SEC-11 (4080.82 ± 130.92 μg/g) and SEC-18 (2339.45 ± 16.36), ferulic acid and protocatechuic acid were rich in accession SEC-09 (2543.73 ± 68.17 μg/g and 1736.59 ± 94.90) respectively. The chromatogram of vanillic acid for the extract of S. edule accession SEC-11 is represented with the standard curve obtained using multiple reaction monitoring is provided in figure 2. The total of highest phenolic acids was found in SEC-09 followed by SEC-11 and SEC-20. Lowest amount of phenolic acids found among accessions were chlorogenic and gentisic acid. In a study conducted by Shivashankar et al. [11] low levels of p-hydroxybenzoic acid (14.52 μg 100 g-1) and salicylic acid was detected using HPLC detection method (177.5 μg 100 g-1 FW) in healthy tissue of S. edule fruits. Our findings on the content of phenolic acid of S. edule provides the scope for improvement of the quality of fruit and its nutritive value. The insight of gene regulation will help promote or aid the breeding of new cultivars/varieties with any specific phenolic acid composition. Similar studies were conducted in Eggplant from accessions in the USDA eggplant core subset [19]. Comparatively, we could detect higher amounts of phenolic acids in methanolic extracts of S. edule. The distribution profile of each phenolic acid among all accessions decreased in the order SEC-09 > SEC-11 > SEC-20 > SEC-18 > SEC-06 > SEC-13 > SEC-03 > SEC-31 > SEC-01 > SEC-05 > SEC-36 > SEC-27.

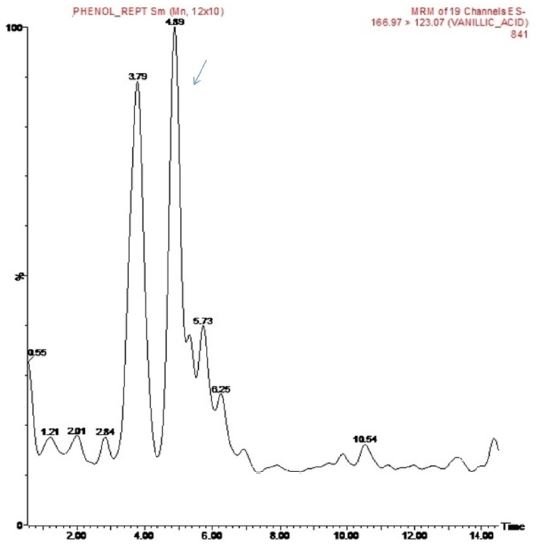

Figure 2: Chromatograms obtained using MRM mode (multiple reaction monitoring) for vanillic acid from S. edule extracts.
Flavonoid composition in S. edule accessionsWith the standards available, we could detect nine flavonoids for the methanolic extracts of twelve S. edule accessions. The details of multiple-reaction monitoring of flavonoid standards is given in the table 4. Quercetin per dry weight ranged from 1.25 to 11.70 μg/g; hespertin ranged from 0.75 to 8.72 μg/g; catechin ranged from 2.53 to 75.83 μg/g; luteolene ranged from 0.27 to 4.49 μg/g; naringenin ranged from 0.18 to 1.36 μg/g; apigenin ranged from 0.13 to 0.88 μg/g; umbeliferon 0.14 to 1.02 μg/g; rutin ranged from 0.28 to 19.43 μg/g and myricetin ranged from 0.48 to 2.08 μg/g. Catechin was present in major quantity compared to other flavonoids among accessions. Accessions SEC-05 had high amounts of quercetin (7.11 ± 1.44 μg/g) and catechin (16.01 ± 1.46 μg/g), accession SEC-09 had high amounts of quercetin (11.70 ± 0.72 μg/g), hespertin (8.72 ± 0.86 μg/g) and catechin (21.06 ± 1.45 μg/g) comparatively, accession SEC-11 also had high amounts of catechin (28.65 ± 1.46 μg/g) and quercetin (9.62 ± 1.44 μg/g). Accession SEC-36 had the highest amount of catechin present (75.83 ± 4.37 μg/g) (Table 5). The chromatogram of catechin for the extract of S. edule accession SEC-11 is represented with the standard curve obtained using multiple reaction monitoring is provided in figure 3.
Compound |
Formula/ass |
Parent m/z |
Cone Voltage |
Daughters |
Collision Energy |
Ion Mode |
Apigenin |
270 |
268.97 |
46 |
107.04 |
30 |
ES- |
Catechin |
290 |
289.03 |
38 |
245.15 |
12 |
ES- |
Hesperetin |
302 |
300.97 |
42 |
286.15 |
16 |
ES- |
Leutoline |
286 |
284.97 |
54 |
150.99 |
26 |
ES- |
Myrcetin |
318 |
317.03 |
42 |
151.06 |
28 |
ES- |
Naringenin |
272 |
271.03 |
34 |
151.00 |
16 |
ES- |
Quercetin |
302 |
301.03 |
36 |
151.12 |
20 |
ES- |
Rutin |
610 |
609.10 |
60 |
300.20 |
42 |
ES- |
Umbelliferone |
162.14 |
161.04 |
42 |
133.07 |
18 |
ES- |
Table 4: Flavanoids MRM details.
Acc No. |
Quercetin |
Hespertin |
Catechin |
Luteolene |
Naringenin |
Apigenin |
Umbeliferon |
Rutin |
Myricetin |
SEC-01 |
2.92 ± 0.72a |
4.73 ± 0.43aj |
2.53 ± 0.04a |
0.27 ± 0.03a |
0.62 ± 0.11a |
0.31 ± 0.07a |
0.14 ± 0.05a |
3.46 ± 0.16a |
1.60 ± 0.27a |
SEC-03 |
1.25 ± 0.02a |
0.75 ± 0.04b |
5.90 ± 1.46b |
1.1 ± 1.19abd |
0.18 ± 0.03a |
0.31 ± 0.07a |
0.14 ± 0.05a |
3.83 ± 0.32a |
2.08 ± 0.27a |
SEC-05 |
7.11 ± 1.44bg |
1.74 ± 0.43bc |
16.01 ± 1.46c |
0.92 ± 0.16a |
0.87 ± 0.21a |
0.31 ± 0.07a |
0.32 ± 0.08a |
0.28 ± 0.01b |
0.48 ± 0.01a |
SEC-06 |
5.43 ± 0.72bc |
0.75 ± 0.04bd |
13.48 ± 1.46d |
2.93 ± 0.31bcde |
0.18 ± 0.03a |
0.88 ± 0.15a |
1.02 ± 0.08a |
1.49 ± 0.16bc |
2.08 ± 0.27a |
SEC-09 |
11.70 ± 0.72d |
8.72 ± 0.86e |
21.06 ± 1.45e |
0.92 ± 0.16a |
0.37 ± 0.01a |
0.39 ± 0.03a |
0.14 ± 0.05a |
0.56 ± 0.03bd |
0.48 ± 0.01a |
SEC-11 |
9.62 ± 1.44e |
3.98 ± 0.43a |
28.65 ± 1.46f |
1.19 ± 0.15ade |
1.18 ± 0.10a |
0.39 ± 0.03a |
0.46 ± 0.08a |
1.21 ± 0.16be |
2.08 ± 0.27a |
SEC-13 |
1.25 ± 0.02a |
3.98 ± 0.43a |
8.42 ± 1.46g |
1.83 ± 0.31ade |
0.37 ± 0.01a |
0.31 ± 0.07a |
0.28 ± 0.05a |
1.49 ± 0.16bf |
2.08 ± 0.27a |
SEC-18 |
1.25 ± 0.02a |
0.75 ± 0.04bf |
5.05 ± 0.03bh |
0.92 ± 0.16a |
0.43 ± 0.10a |
0.13 ± 0.01a |
0.88 ± 0.08a |
2.43 ± 0.32acdefj |
1.60 ± 0.27a |
SEC-20 |
2.51 ± 0.05a |
1.74 ± 0.43bg |
8.42 ± 1.46gi |
4.49 ± 0.31cf |
0.43 ± 0.10a |
0.61 ± 0.07a |
0.32 ± 0.08a |
19.43 ± 0.64g |
0.48 ± 0.01a |
SEC-27 |
2.51 ± 0.05a |
0.75 ± 0.04bh |
10.95 ± 1.45j |
1.19 ± 0.15aeg |
0.99 ± 0.10a |
0.26 ± 0.02a |
0.28 ± 0.05a |
0.56 ± 0.03bjkh |
0.48 ± 0.01a |
SEC-31 |
7.94 ± 0.72efg |
0.75 ± 0.04bi |
8.43 ± 1.45gk |
2.93 ± 0.31dfg |
1.36 ± 0.10a |
0.13 ± 0.01a |
0.28 ± 0.05a |
0.84 ± 0.05bijk |
2.08 ± 0.27a |
SEC-36 |
2.92 ± 0.72a |
6.48 ± 0.86j |
75.83 ± 4.37l |
0.27 ± 0.03a |
0.37 ± 0.01a |
0.97 ± 0.07a |
0.60 ± 0.08a |
2.34 ± 0.16acdefk |
0.96 ± 0.03a |
Max value |
11.70 ± 0.72 |
8.72 ± 0.86 |
75.83 ± 4.37 |
4.49 ± 0.31 |
1.18 ± 0.10 |
0.97 97 ± 0.07 |
1.02 ± 0.08 |
19.43 ± 0.64 |
2.08 ± 0.27 |
Min value |
1.25 ± 0.02 |
0.75 ± 0.04 |
2.53 ± 0.04 |
0.27 ± 0.03 |
0.18 ± 0.03 |
0.13 ± 0.01 |
0.14 ± 0.05 |
0.28 ± 0.01 |
0.48 ± 0.01 |
Table 5: Flavonoids composition of twelve different accessions from India (μg/g of Dried Material).
Data are represented as the mean ± Standard deviation (n = 3). Values in the same column that are followed by different superscript letters are significantly different (p < 0.05).
Flavonoid content is usually dependent on the cultivars and growing conditions as they are produced in direct response to environmental conditions. Therefore, the differences in concentration in the collected accessions was observed [20,21]. Catechins, a disease fighting flavonoid, which are a group of flavanols are found in various fruits and vegetables derived from plants. It is one of the potent antioxidant compound present. The extract of O. linearis was found to have high amounts of catechin compared to other flavanols (0.113 ± 0.03mg/gm) [22]. About four flavonoids were detected in a study conducted by Siciliano., et al. (2004) in S. edule fruits collected from Monasterace (RC), Italy and those were, vicenin- 2, apigenin 6-C-â-D-glucopyranosyl-8-C-â-D-apiofuranoside, vitexin and luteolin 7-O-rutinoside in trace amounts using HPLC-PDA-ESI-MS detection method. Substantially, LC-MS method developed in our study is more sensitive than the other reported methods as we could detect nine flavonoids in minimal amounts. Though S. edule was found to have low concentrations of flavonoids comparatively to other plant species, the distribution profile of each flavonoid among all accessions decreased in the order SEC-36 > SEC-11 > SEC-09 > SEC-20 > SEC-06 > SEC-05 > SEC-31 > SEC-13 > SEC-27 > SEC-01 > SEC-03 > SEC-18.
Figure 3: Chromatograms obtained using MRM mode (multiple reaction monitoring) for catechin from S. edule extracts.
Principle component analysis of phenolic acids and flavonoidsThe LC-MS data is confirmed by Principal component analysis, which showed that the accessions SEC-09, SEC-11 and SEC-20 forms a distinct individual unclustered accessions compared to other remaining accessions showing the presence of high amount of phenolic acids and flavonoids. The components PC1 and PC2 showed about 30% and 18% variation. The total variation of 90% was observed by the first six principal components (i.e., 30, 18, 13, 11, 11 and 7%). PCA is considered to be a powerful tool for identification of data patterns and useful in analysis of data highlighting the similarities and differences in a group, and provides the plots for distribution of samples and variables employed on the principal components respectively.
Ferulic acid, protocatechuic acid, p-courmaric acid, gentic acid, benzoic acid, caffeic acid, p-hydroxybenzoic acid, vanillic acid, salicylic acid and myrecetin had higher coefficients on the axis of the first PC as compared to the other axis. Such an analysis provides information about the correlations as well as dependencies of metabolites among accessions [23]. The scatter plots of score and loadings of PC1 and PC2 is shown in the figure 4A and figure 4B depicting the formation of one major cluster towards left. Similar studies have been conducted using wheat varieties and vegetable oils [24,25]. Therefore, Exploration of PCA for the data obtained using LC-MS demonstrated that the method is useful for discrimination of S. edule accessions. Quantification of phenolic acids and flavonoids in S. edule is important for application purpose as it affects the quality of fruits and simultaneously the antioxidant activities may be beneficial for improving health and preventing diseases.

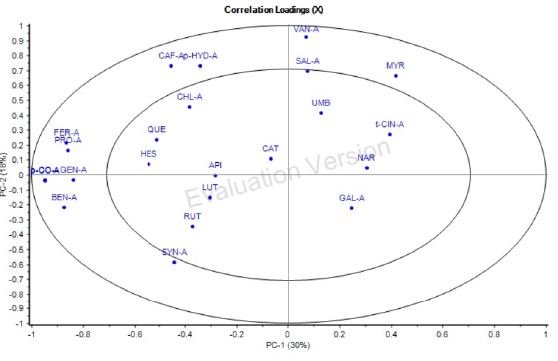

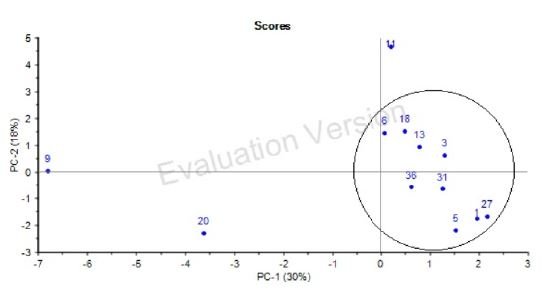

Figure 4: Principal component analysis (PCA) results for phenolic acids and flavonoids present in S. edule accessions (Score (A) and loadings (B) plots of PC1 and PC2).
We showed the first comprehensive study of variability of phenolic acids and flavonoids in the accessions collected from India. In total, fourteen phenolic acids and nine flavonoids were quantified by LC-MS in the methanolic extracts of S. edule, and the establishment of such a method showed well separation of compounds and are reproducible. With the aid of PCA, the LC-MS data were mined for similarity and differences in phytochemical composition between accessions. Despite the numerous methods for polyphenols detection, the validated and optimized method in S. edule is still lacking. Therefore, this method is suitable for determination of phenolic acids and flavonoids for high efficiency and can help in genetic grouping of landraces as well as for developing more efficient strategies to gain a greater knowledge for future breeding programs.
No funding was received for conducting this study. Authors thank the management of Jain University - CPGS, Department of Biotechnology and ICAR-Indian Institute of Horticultural Research, Division of Plant Physiology and Biochemistry for providing the necessary facilities to conduct the present study.
The authors have no conflicts of interest to declare that are relevant to the content of this article.
Copyright: © 2021 Kamde Shivanand., et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
