Anju Hajong1, Sohini Deb2, Pronomi M Sangma1, CP Suresh1 and Satyawada Rama Rao2*
1Department of Horticulture, North Eastern Hill University, Tura, Meghalaya, India
2Plant Biotechnology Laboratory, Department of Biotechnology and Bioinformatics, North Eastern Hill University, Permanent Campus, Shillong, Meghalaya, India
*Corresponding Author: Satyawada Rama Rao, Department of Biotechnology and Bioinformatics, Plant Biotechnology Laboratory, North-Eastern Hill University, Shillong, Meghalaya, India.
Received: February 19, 2021; Published: March 06, 2021
North east India is a major biodiversity hotspot as it is bestowed with various natural resources. Meghalaya, in particular is known to house many horticultural crops, out of which, the great diversity of Musa sp is highly significant. In the present study, 21 genotypes of Musa sp. were collected from five distcits of Garo Hills of Meghalaya, India and were analyzed to understand their morphological and genetic variation. The intra-specific relationship prevalent among them was also evaluated. Some important morphological parameters were selected to understand the variation present in the collected genotypes. Further, three single primer based DNA markers viz. Random Amplified Polymorphic DNA (RAPD), Inter Simple Sequence Repeats (ISSR) and Directed Amplifications of Mini-satellite DNA (DAMD) were chosen for the diversity analysis. A total of 33 primers (17 RAPD, 10 ISSR, 6 DAMD) were selected, which yielded 207 DNA amplicons. High level of polymorphism was observed among the genotypes. The polymorphic information content (PIC) values of the markers were similar, ranging from 0.34-0.39. The resolving power (Rp) and marker index (MI) in case of both ISSR and DAMD were found to be similar (~6.9 and 2.4 respectively). High level of genetic diversity values were observed in the population genetic parameters, with a significant Gene flow estimates (Nm>1) of 1.7494, high Nm (1.7494) and Gst (0.2223) values. Nei's gene diversity (h) and Shannon's information index (I) values varied between 0.1998-0.2976 and 0.2981-0.4391 respectively, further establishing the high variation among the genotypes. Analysis of molecular variations (AMOVA) also revealed high level of genetic variation within the populations (97%). The dendrogram and the principal component analysis (PCoA) generated based on the Single Primer Amplification Reaction (SPAR) data revealed high intermixing of the wild Musa genotypes.
Keywords: Musa; Morphology; SPAR; Population Genetics; Garo Hills; Genetic Diversity
AMOVA: Analysis of Molecular Variance; CTAB: Cetyl-Trimethyl Ammonium Bromide; PCoA: Principal Coordinate Analysis; PCR: Polymerase Chain reaction; RAPD: Random Amplified Polymorphic DNA; ISSR: Inter Simple Sequence Repeats; DAMD: Directed Amplifications of Mini-satellite DNA; SPAR: Single Primer Amplification Reaction; PIC: Polymorphic Information Content; Rp: Resolving power; MI: Marker Index; EMR: Effective Multiplex Ratio; S.Em: Standard Error of Mean; CD: Critical Difference, CV: Coefficient of Variance.
Bananas (Musa spp.) are monocotyledonous, herbaceous, parthenocarpic plants belonging to the section Eumusa under the family Musaceae [24]. It is staple food for millions of people in the developing countries like India and Africa. All the edible banana varieties that are cultivated currently are known to have originated from the two wild species Musa acuminata and M. balbisiana, through inter and intraspecific hybridization crosses [30]. Wild Musa species are largely distributed in tropical and sub-tropical regions, like the North-east India, the Himalayan region, Assam, Arunachal Pradesh, Meghalaya and some parts of Nagaland. Additionally, wild Musa species are found in the hilly terrains of Khasi, Jaintia, Naga, Patkai and Garo hills of North-East India, at both lower and higher altitudes [15].
In population of a plant species, variations are known to occur both, genotypically and phenotypically [32]. Though genetic markers are hallmarks to determine the extent of diversity and inter-relationships among them, the phenotypic variations among individuals of a species, may also provide significant insight into their evolutionary patterns [4,9]. Morphological parameters, which are under constant selection pressure, are expected to provide an understanding on how different environmental factors result in different phenotypic characters and demonstrate their role in the evolution of a plant species in question [18].
Molecular marker checks for the presence of the specific nucleotide sequences which encodes a particular trait or character [11]. The PCR based DNA marker techniques provide reliable and authentic genetic information of a species [15]. Random Amplified Polymorphic DNA (RAPD), Inter Simple Sequence Repeats (ISSR) and Directed Amplifications of Mini-satellite DNA (DAMD) are some of the DNA-based marker techniques that has been successfully implemented and widely used to determine the genetic diversity and relationships in several Musa sp. from various populations [3,12,15,17,33]. These single primer markers yield many amplicons after PCR, which can be used to study the genetic variation as a multilocus marker system [20]. RAPD uses arbitrary primers and is advantageous being rapid and cost-efficient [22]. Similarly, ISSR technique is considered as a fast, cost-effective, highly discriminative and reliable technique for genetic diversity analysis [25]. DAMD markers are advantageous as they are highly polymorphic [22]. Recently, the single primer amplification reaction (SPAR) method has been established as an efficient tool for genetic diversity analysis in plants [15,16,19,26]. SPAR includes data generated by RAPD, ISSR and DAMD to provide a comprehensive description of the extent of the existing diversity available among the genotypes [2,13,28,29].
The wild Musa sp. are the progenitors of the present cultivated varieties, and hence their molecular characterization is vital for breeding and conservation purposes [4]. Wild varieties of Musa have been reported to have certain favourable characteristics like resistance to diseases, etc. [10,15]. In spite of being bestowed with so many important values, only a few studies have been conducted on the wild Musa varieties of Garo Hills, Meghalaya. Molecular characterization studies were carried out on wild Musa varieties collected from various locations of Meghalaya [15,16]. However, only a few genotypes from the Garo Hills region was included in that study. Therefore, the characterization of the various wild Musa sp. and the detection of their genetic relationship is of utmost importance to devise their biofortification and conservation programmes.
Exploration trips were carried out to the various locations of Garo Hills in Meghalaya. A total of 21 genotypes of Musa spp. were collected from the 5 districts viz., East Garo Hills, West Garo Hills, North Garo Hills, South Garo Hills and South West Garo Hills (Figure 1) (Table 1). Young and disease-free leaves from the plants were collected, cleaned and stored at -80°C for future experiments.
Figure 1: Geographical locations of wild Musa species in five districts of Garo Hills, Meghalaya, India, with numbers indicating the collection sites.
Sl. No. |
Collection ID |
Place of collection |
Latitude |
Longitude |
1. |
KK-WGH |
West Garo Hills (Rongkhon) |
N 25˚32’10.51” |
E90˚13’45.02” |
2. |
Go-EGH |
East Garo Hills (Mandalgre) |
N 25˚30’67.42” |
E90˚ 23’55.08” |
3. |
CT-NGH |
North Garo Hills (Mendi) |
N 25˚35’16.90” |
E90˚ 38’23.61” |
4. |
CH-WGH |
West Garo Hills (Upper Chandmari) |
N 25˚30’67.42” |
E90˚ 23’55.82” |
5. |
WRL-NGH |
North Garo Hills (Resubelpara) |
N 25˚35’16.91” |
E90˚ 38’23.60” |
6. |
TD-EGH |
East Garo Hills (Bandigre) |
N 25˚30’92.06” |
E90˚22’29.07” |
7. |
EB-SWGH |
South West Garo Hills (Zikzak) |
N 25˚26’38.53” |
E89˚55.67.06” |
8. |
EG-SWGH |
South West Garo Hills (Phuljuri) |
N 25˚22’19.04” |
E89˚52’26.14” |
9. |
TG-WGH |
West Garo Hills (Daribok) |
N 25˚29’31.20” |
E90˚19’26.17” |
10. |
MR-EGH |
East Garo Hills (Samanda) |
N 25˚35’07.72” |
E90˚30’93.82” |
11. |
SM-SGH |
South Garo Hills (Siju) |
N 25˚21’09.07” |
E90˚34’89.90” |
12. |
ZN-SGH |
South Garo Hills (Nengkong) |
N 25˚17’85.29” |
E90˚36’46.27” |
13. |
DG-EGH |
East Garo Hills (Bansamgre) |
N 25˚34’12.14” |
E90˚28’05.18” |
14. |
RL-NGH |
North Garo Hills (RongmaGitil) |
N 25˚35’16.90” |
E90˚38’23.61” |
15. |
RG-NGH |
North Garo Hills (RongmaGitil ) |
N 25˚51’78.42” |
E90˚51’98.55” |
16. |
MN-SWGH |
South West Garo Hills (Borkona) |
N 25˚20’03.72” |
E89˚50’02.07” |
17. |
ES-WGH |
West Garo Hills (Darechekgre) |
N 25˚32’24.42” |
E90˚15’47.03” |
18. |
AB-SWGH |
South West Garo Hills (Mahendraganj) |
N 25˚19’20.71” |
E89˚51’67.24” |
19. |
WB-WGH |
West Garo Hills (Sasatgre) |
N 25˚30’32.51” |
E90˚20’02.18” |
20. |
AS-SWGH |
South West Garo Hills (Mahendraganj) |
N 25˚20’03.16” |
E90˚50’03.06” |
21. |
RB-SGH |
South Garo Hills (Rongdong) |
N25˚22’58’12.17” |
E90˚ 40’70.11” |
Table 1: Places of collections of the Musa genotypes from Garo Hills, Meghalaya.
Morphological analysisA few morphological traits of the collected genotypes of Musa were described by following the descriptors on morphological and physical traits, provided by the International Network for the Improvement of Banana and Plantain [1] (Table 2, 3).
Sl. No. |
Collection ID |
Peduncle length (cm) |
Fruit pedicel length (mm) |
Fruit length (cm) |
Fruit weight (g) |
1. |
EB-SWGH |
33.06 |
11.50 |
12.66 |
22.856 |
2. |
MN-SWGH |
63.33 |
17.15 |
26.16 |
145.53 |
3. |
AB-SWGH |
32.66 |
11.18 |
11.66 |
120.63 |
4. |
AS-SWGH |
38.5 |
17.41 |
17.26 |
108.80 |
5. |
EG-SWGH |
46.52 |
18.33 |
17.26 |
59.883 |
6. |
SM-SGH |
38.26 |
16.76 |
17.66 |
121.62 |
7. |
RB-SGH |
40.63 |
16.83 |
16.16 |
146.93 |
8. |
ZN-SGH |
40.16 |
16.50 |
16.53 |
118.6 |
9. |
Go-EGH |
30.41 |
16.78 |
14.45 |
136.8 |
10. |
TD-EGH |
31.46 |
13.75 |
13.33 |
128.2 |
11. |
DG-EGH |
28.41 |
14.21 |
13.33 |
155.88 |
12. |
MR-EGH |
28.55 |
17.78 |
20 |
111.65 |
13. |
CH-WGH |
61.6 |
9.58 |
19.33 |
126.65 |
14. |
WRL-NGH |
58.43 |
8.03 |
14.33 |
90.913 |
15. |
RL-NGH |
26.93 |
12.15 |
11.9 |
152.43 |
16. |
RG-NGH |
54 |
17.60 |
23.83 |
188.22 |
17. |
CT-NGH |
36.16 |
16.36 |
15.5 |
117.86 |
18. |
ES-WGH |
76.1 |
15.81 |
17.83 |
42.57 |
19. |
WB-WGH |
34.51 |
16.15 |
17.83 |
16.903 |
20. |
TG-WGH |
33.9 |
12.25 |
15.83 |
46.226 |
21. |
KK-WGH |
66.33 |
16.58 |
18 |
217.68 |
|
Mean |
33.06 |
11.5 |
12.66 |
22.85 |
|
S.Em± |
0.931 |
0.703 |
1.087 |
3.875 |
|
CD (5%) |
2.662 |
2.010 |
3.108 |
11.077 |
|
CV (%) |
4.1166 |
8.182 |
11.270 |
5.930 |
Table 2: Metric traits of Musa species.
*SEm: Standard Error of Mean, CD: Critical Difference, CV: Coefficient of variance.
Sl. No. |
Collection ID |
Leaf habit |
Pseudostemcolour |
Pseudostem appearance |
Sap colour |
Male bud type |
Male bud shape |
Pulp in fruit |
Pulp colour before maturity |
1 |
EB-SWGH |
Erect |
Green |
Dull (Waxy) |
Milky |
Normal (present) |
Lanceolate |
With pulp |
White |
2 |
RB-SGH |
Intermediate |
Red |
Shiny (Not waxy) |
Red-purple |
Normal (present) |
Ovoid |
With pulp |
White |
3 |
Go-EGH |
Erect |
Medium green |
Dull (Waxy) |
Watery |
Normal |
Rounded |
With pulp |
White |
4 |
CT-NGH |
Drooping |
Dark green |
Dull (Waxy) |
Milky |
Normal |
Intermediate |
With pulp |
White |
5 |
KK-WGH |
Intermediate |
Dark green |
Shiny (Not waxy) |
Watery |
Normal |
Lanceolate |
With pulp |
White |
6 |
CH-WGH |
Drooping |
Green |
Shiny (Not waxy) |
Red-purple |
Normal |
Intermediate |
With pulp |
White |
7 |
WRL-NGH |
Erect |
Green |
Shiny (Not waxy) |
Red-purple |
Normal |
Lanceolate |
With pulp |
White |
8 |
TD-EGH |
Intermediate |
Green |
Dull (Waxy) |
Milky |
Degenerating before maturity |
Intermediate |
With pulp |
White |
9 |
SM-SGH |
Erect |
Green-yellow |
Shiny (Not waxy) |
Watery |
Degenerating before maturity |
Ovoid |
With pulp |
White |
10 |
ZN-SGH |
Intermediate |
Green-red |
Dull (Waxy) |
Watery |
Normal (present) |
Rounded |
With pulp |
White |
11 |
DG-EGH |
Erect |
Medium green |
Dull (Waxy) |
Watery |
Normal |
Rounded |
With pulp |
White |
12 |
RL-NGH |
Drooping |
Medium green |
Shiny (Not waxy) |
Milky |
Normal |
Ovoid |
With pulp |
White |
13 |
RG-NGH |
Intermediate |
Medium green |
Shiny (Not waxy) |
Milky |
Degenerating before maturity |
Lanceolate |
With pulp |
White |
14 |
MN-SWGH |
Drooping |
Green-yellow |
Dull (Waxy) |
Watery |
Normal |
Lanceolate |
With pulp |
White |
15 |
ES-WGH |
Erect |
Green |
Shiny (Not waxy) |
Watery |
Normal |
Lanceolate |
With pulp |
White |
16 |
AB-SWGH |
Intermediate |
Dark green |
Dull (Waxy) |
Milky |
Normal (present) |
Intermediate |
With pulp |
White |
17 |
WB-WGH |
Intermediate |
Green |
Dull (Waxy) |
Milky |
Normal |
Lanceolate |
With pulp |
White |
18 |
AS-SWGH |
Intermediate |
Red |
Shiny (Not waxy) |
Red-purple |
Normal (present) |
Intermediate |
With pulp |
White |
19 |
TG-WGH |
Erect |
Medium green |
Dull (Waxy) |
Watery |
Normal |
Rounded |
With pulp |
White |
20 |
MR-EGH |
Drooping |
Dark green |
Dull (Waxy) |
Milky |
Normal |
Ovoid |
With pulp |
White |
21 |
EG-SWGH |
Intermediate |
Dark green |
Shiny (Not waxy) |
Watery |
Normal |
Lanceolate |
With pulp |
White |
Table 3: Morphological characters of collected genotypes.
Genomic DNA isolationTotal genomic DNA was isolated from young, disease free leaves of the collected samples of Musa spp using CTAB (Cetyltrimethyl ammonium bromide) method with some minor modifications [5]. The quality and quantity of the purified DNA was ascertained by 0.8% (w/v) agarose gel electrophoresis and the absorbance ratio (A260/A280) of DNA using Nano-VuePlusTM (GE Healthcare Limited United Kingdom).
PCR optimization and primer selectionFour RAPD kits (OPA, OPC, OPK and OPX) comprising of 20 decamer random primers per kit (total 80 primers) were used, which were procured from Operon Technologies, Alameda, CA, USA. In addition, 36 ISSR primers and 20 DAMD primers obtained from M/S Integrated DNA Technologies (IDT), USA were also used. To optimize the PCR conditions for amplification,varying concentrations of template DNA (20-60 ng), dNTPs (0.1-0.3 mM) and MgCl2 (0–5 mM) were used. Amplification of each of the primers were carried out thrice, and out of the those, 33 (17 RAPD, 10 ISSR, 6 DAMD) primer pairs which produced clear, consistent and reproducible bands were selected for scoring and further analysis.
DNA marker analysisAfter the screening of 80 primers from four RAPD kits, 17 primers were found to produce clear and consistent bands. 10 ISSR primers and 6 DAMD primers, which produced clear and reproducible bands were selected. The PCR amplifications were performed as per Lamare and Rao (2015) with certain minor modifications.
Gel electrophoresisThe amplified PCR products were resolved on 2% agarose gel (stained with ethidium bromide) and visualized using a Gel Documentation system (DNA-Minilumi, DNR Bioimaging System, Israel). A DNA ladder of100bp (Thermo Fischer Scientific, USA) was used to estimate the sizes of amplicons generated (Figure 3).
Data scoring and analysisThe banding profile were scored against the presence or absence of a DNA band and denoted as ‘1’ or ‘0’, respectively. Faint bands that could not be scored clearly were not considered for analysis. The molecular sizes of the amplicons were estimated by using 100bp DNA ladder. Discriminatory power of each of the markers (RAPD, ISSR and DAMD) was calculated by three parameters viz. polymorphic information content (PIC), resolving power (RP), and marker index (MI). PIC measures the discriminatory ability and the informativeness of a marker and is calculated [27]. Resolving power (RP) which detects the level of variations between individual genotypes was estimated [23]. Further, marker Index (MI) which may provide an estimate of marker utility was calculated [6]. The dendrograms were generated using the pair-wise distance data by the software DARwin 6.0.21 [21]. POPGENE version 1.32 was used to generate the Nei’s genetic diversity (h), Shannon index (I) and the diversity among the populations (GST) for the analysis of population genetics. Free-Tree 0.9.1.5 software was used to construct Nei’s (1978) unbiased genetic diversity dendrogram [6]. AMOVA (Analysis of Molecular Variance) and PCoA (Principal Co-ordinate Analysis) results were generated using GenAlEx software, version 6.503 [9,19].
Data pertaining to various parameters is represented in table 2. The average measurements of the peduncle, fruit pedicel, fruit besides fruit weight were recorded as 33.06cm, 11.5mm, 12.66cm and 22.85gm respectively. The appearance of pseudostem were mostly waxy and its colour varied from dark/bluish green to light green. However, a striking difference was observed in genotypes RB-SGH and AS-SWGH, which had red pseudostem. In all the genotypes pulp was present and it was invariably white in colour. A Principal Component Analysis (PCoA) was also performed using the data obtained from the physical parameters (Figure 2).

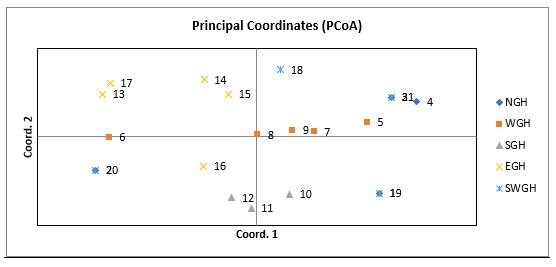

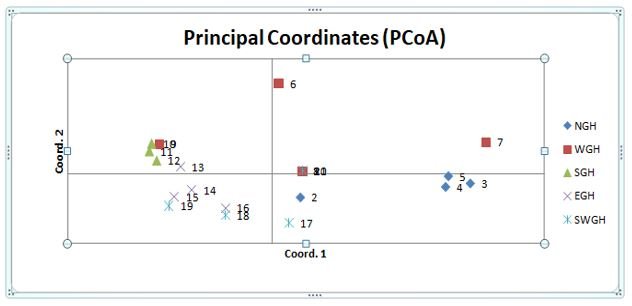

Figure 2: PCo Analysis of five populations comprising of 21 accessions of Musa sp.from five districts of Garo Hills (Colour Coded) generated by using the various physical parameters. The numbers indicate the collected samples (Table 2).

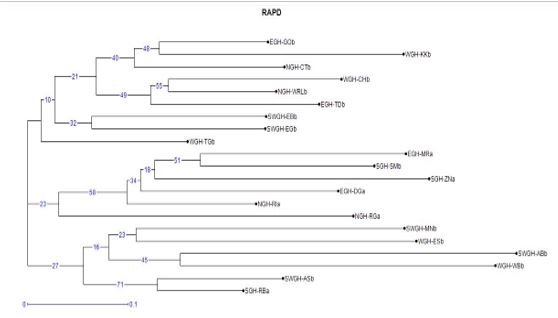

RAPD analysisThe 17 primers with reliable banding patterns, produced a total of 92 amplicons, ranging from 10-100bp. A very high percentage of polymorphism was observed. The Polymorphic Information Content (PIC) value ranged from 0.14 (OPA-4) to 0.48 (OPX-3, OPC-7), having a mean value of 0.35 per primer. The average RP value was found to be 3.83 with OPA-13 andOPK-2 having the highest (8.00) and lowest (0.57)values, respectively. The Marker Index (MI) for RAPD was calculated to be 1.90.

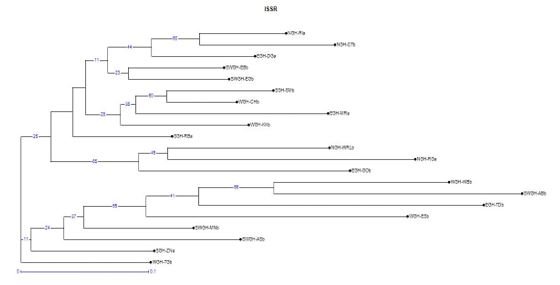

ISSR AnalysisThe 10 selected ISSR primers generated a total of 63 amplicons and showed a high degree of polymorphism. The PIC values ranged from 0.30 (ISSR-2) to 0.48 (ISSR-17899A), with an average value of 0.39. The RP value was highest for ISSR-17899B (12.19) and lowest for ISSR-P8 (3.05) and an average value at 6.89. The MI for ISSR was found to be 2.46.

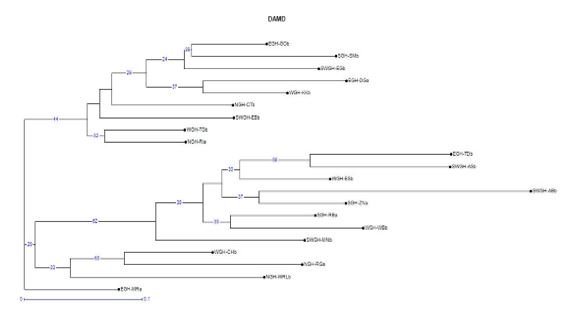

DAMD analysisSix DAMD primers were selected after thorough screening,which generated 46 ampliconsin total. The percentage of polymorphic bands was found to be 96.67%. The PIC values ranged from 0.25 (D-8) to 0.44 (D-4) with an average of 0.34. The average RP value was found to be 6.90, with the highest in D-8 (14.57) and lowest in D-11(2.29). The MI for DAMD was found to be 2.49.

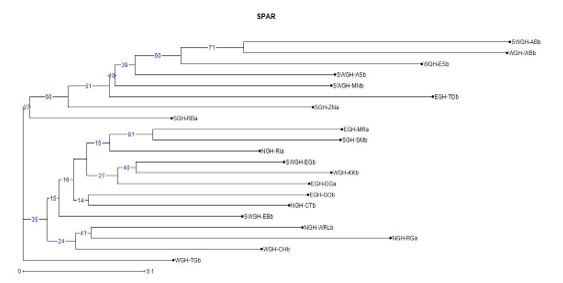

SPAR analysisThe gel profiles obtained after DNA amplification using the three markers revealed polymorphism at various levels and independent of each other (Figure 3). A combined analysis (SPAR) was performed as well for a better understanding of the diversity in the collected samples of Musa sp. The 33 primers which were selected yielded a total of 207 amplicons. The polymorphism percentage was found to be 98.89%. The mean values of PIC, Rp and MI of the three markers were found to be 0.36, 5.87 and 2.28 respectively (Table 4).

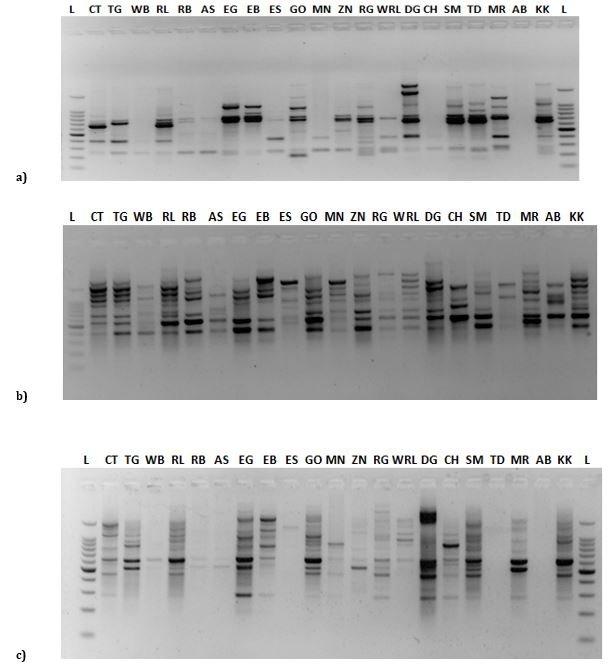

Figure 3: Banding profiles obtained with (a)RAPD primer, (b)ISSR primer and (c)DAMD primer with all 21 individuals of Musa sp.
Sl. No. |
Primer |
Sequences (5'-3') |
TB |
PB |
MB |
PPB |
PIC |
Rp |
MI |
RAPD |
|||||||||
1 |
OPK-10 |
GTGCAACGTG |
5 |
5 |
0 |
100 |
0.45 |
3.52381 |
1.9 |
2 |
OPA-4 |
AATCGGGCTG |
8 |
8 |
0 |
100 |
0.14 |
1.428571 |
|
3 |
OPA-2 |
TGCCGAGCTG |
7 |
7 |
0 |
100 |
0.42 |
7.714286 |
|
4 |
OPC-5 |
GATGACCGCC |
6 |
6 |
0 |
100 |
0.22 |
1.52381 |
|
5 |
OPA-13 |
CAGCACCCAC |
7 |
7 |
0 |
100 |
0.38 |
8.0 |
|
6 |
OPK-8 |
GAACACTGGG |
8 |
8 |
0 |
100 |
0.42 |
4.952381 |
|
7 |
OPC-11 |
AAAGCTGCGG |
7 |
7 |
0 |
100 |
0.48 |
6.761905 |
|
8 |
OPC-9 |
CTCACCGTCC |
4 |
4 |
0 |
100 |
0.47 |
4.190476 |
|
9 |
OPX-3 |
TGGCGCAGTG |
3 |
3 |
0 |
100 |
0.29 |
1.142857 |
|
10 |
OPC-12 |
TGTCATCCCC |
5 |
5 |
0 |
100 |
0.43 |
3.52381 |
|
11 |
OPK-2 |
GTCTCCGCAA |
6 |
6 |
0 |
100 |
0.09 |
0.571429 |
|
12 |
OPK-6 |
CACCTTTCCC |
5 |
5 |
0 |
100 |
0.34 |
2.190476 |
|
13 |
OPK-4 |
CCGCCCAAAC |
2 |
2 |
0 |
100 |
0.25 |
0.666667 |
|
14 |
OPC-7 |
GTCCCGACGA |
7 |
7 |
0 |
100 |
0.48 |
6.47619 |
|
15 |
OPC-19 |
GTTGCCAGCC |
4 |
4 |
0 |
100 |
0.35 |
2.095238 |
|
16 |
OPA-3 |
AGTCAGCCAC |
8 |
8 |
0 |
100 |
0.44 |
7.714286 |
|
17 |
OPC-8 |
TGGACCGGTG |
6 |
6 |
0 |
100 |
0.33 |
2.571429 |
|
Total: |
98 |
98 |
0 |
||||||
Average |
100 |
0.35 |
3.83 |
||||||
ISSR |
|||||||||
1 |
I-17898A |
CACACACACACAAC |
7 |
7 |
0 |
100 |
0.47 |
6.666667 |
2.46 |
2 |
I-17899B |
CACACACACACAGG |
8 |
8 |
0 |
100 |
0.34 |
12.19048 |
|
3 |
I-P3 |
AGAGAGAGAGAGAGAGTG |
6 |
6 |
0 |
100 |
0.38 |
8.666667 |
|
4 |
I-P6 |
CCACCACCACCACCA |
6 |
6 |
0 |
100 |
0.33 |
6.952381 |
|
5 |
I-P8 |
CACCCACCACCACCA |
5 |
5 |
0 |
100 |
0.41 |
3.047619 |
|
6 |
I-17898B |
CACACACACACAGT |
6 |
6 |
0 |
100 |
0.36 |
3.52381 |
|
7 |
I-17899A |
CACACACACACAAG |
8 |
8 |
0 |
100 |
0.48 |
8.380952 |
|
8 |
I-5 |
CACCACCACGC |
6 |
6 |
0 |
100 |
0.38 |
6.666667 |
|
9 |
I-2 |
CTCTCTCTCTCTCTCTAC |
8 |
8 |
0 |
100 |
0.3 |
9.047619 |
|
10 |
I-3 |
TCCTCCTCCTCCTCCAC |
3 |
3 |
0 |
100 |
0.46 |
3.714286 |
|
Total: |
63 |
63 |
0 |
||||||
Average |
100 |
0.39 |
6.89 |
||||||
DAMD |
|||||||||
1 |
D-8 |
AATGTGGGCAAGCTGGTGGT |
10 |
8 |
2 |
80 |
0.25 |
14.57143 |
2.49 |
2 |
D-10 |
GGACAAGAAGAGGATGTGGA |
6 |
6 |
0 |
100 |
0.39 |
7.619048 |
|
3 |
D-1 |
ATCCAAGGTCCGAGACAACC |
9 |
9 |
0 |
100 |
0.33 |
4.571429 |
|
4 |
D-2 |
GTGTGCGATCAGTTGCTGGG |
5 |
5 |
0 |
100 |
0.36 |
2.761905 |
|
5 |
D-4 |
AGGACTCGATAACAGGCTCC |
9 |
9 |
0 |
100 |
0.44 |
9.619048 |
|
6 |
D-11 |
TACACGTCTCGATCTACAGG |
7 |
7 |
0 |
100 |
0.27 |
2.285714 |
|
Total: |
46 |
44 |
2 |
||||||
Average |
96.67 |
0.34 |
6.90 |
||||||
|
|
|
SPAR |
|
|
|
|
|
|
SPAR |
207 |
205 |
2 |
98.89 |
0.36 |
5.87 |
2.28 |
Table 4: RAPD, ISSR, and DAMD primers used for amplification. TB, total band; PB, polymorphic band; MB monomorphic band; PPB, percentage polymorphic band; PIC, polymorphic information content; RP, resolving power.
Cluster analysis RAPD analysisThe dendrogram was generated using Neighbour-joining method and it consisted of three major clusters (Figure 4). Cluster I has two sub-divisions into IA and IB and a total of 9 samples. The genotype WGH-TGb at Cluster I, is observed to have the shortest branch, thereby denoting its probable ancestry. Six collections were retained at Cluster II where a mixed clustering is observed. The collections from SWGH demonstrate close similarity at IB. SWGH-ABb genotype in Cluster III, appears to have the longest branch and therefore can possibly be most recently evolved. It is followed shortly by the WGH-WBb genotype in the evolutionary history. All the three clusters show notable bootstrap values, signifying reliability of the tree generated. Cluster III comprises of samples representing all the collection sites. The genotypes SWGH-ASb and SGH-RBa showed the highest bootstrap value (71%) denoting a strong relationship among them.
Figure 4: Cluster analysis of RAPD data for 21 genotypes of Musa from Garo Hills, Meghalaya. The NJ tree was generated with 100 replicate bootstrap analysis.
ISSR analysisThe ISSR dendrogram separates the collections into two major clusters. Cluster I, comprises of 13 samples with two noticeable sub-clusters IA and IB (Figure 5). IA shows distinct similarity among collections from the same sampling sites, NGH and SWGH, respectively. Interestingly, IB on the other hand comprises of 3 samples from unrelated sampling locations.Cluster II, demonstrates mixed clustering of collections with a significant bootstrap value. The appearance of SWGH-ABb collection in Cluster III, as the longest branch represents its recent position in the evolutionary time frame.A striking feature of Cluster III was the appearance of the genotype, SGH-ZNa with the shortest branch which signified its ancestral position.
Figure 5: Cluster analysis of ISSR data for 21 genotypes of Musa from Garo Hills, Meghalaya. The NJ tree was generated with 100 replicate bootstrap analysis.
DAMD analysisThe DAMD dendrogram distinguishes the 21 collections into 2 distinct clusters, I and II (Figure 6). Cluster I comprises of 9 genotypes demonstrating similarity from different sampling sites. There is a mixed clustering of collections in both the clades. Cluster II, has two further sub-divisions, IIA and IIB.The genotype SWGH-ABb appears to be the most recent as it has the longest branch. EGH-MRa appears as a distinct outgroup with the shortest branch length.
Figure 6: Cluster analysis of DAMD data for 21 genotypes of Musa from Garo Hills, Meghalaya. The NJ tree was generated with 100 replicate bootstrap analysis.
SPAR analysisTwo distinct clusters, I and II are formed in the SPAR dendrogram (Figure 7). An overall mixed clustering was observed among the collections. Eight samples, from random sampling sites are assembled in Cluster I. The genotype SWGH-ABb has the longest branch, followed shortly by WGH-WBb. The same cluster also has the genotype SGH-RBa, with the shortest branch, which might be an indication of its ancestral position.Cluster II groups 12 genotypes, from different collection sites. The genotype, WGH-TGb appears as an outgroup. Both the clusters have significant values of bootstrap confidence, with the genotypes EGH-MRa and SGH-SMb having the highest bootstrap value (81%).
Figure 7: Cluster analysis of SPAR data for 21 genotypes of Musa from Garo Hills, Meghalaya. The NJ tree was generated with 100 replicate bootstrap analysis.
Diversity analysisThe 5 populations of Musa sp. were evaluated to estimate their gene flow. SPAR data was used to generate the various parameters to ascertain genetic diversity of the samples (Table 5). The Na (observed number of alleles) values ranged from 1.5362-1.7729. The Ne (effective number of alleles) were in the range of 1.3386-1.5165. Number of polymorphic loci (n) ranged from 111-160, while percentage of polymorphism among the populations ranged between 53.62%-77.29%. Nei's gene diversity (h) and Shannon's information index (I) values varied between 0.1998-0.2976 and 0.2981-0.4391, respectively. Gene flow (Nm) and the diversity among populations (GST) were found to be 1.7494 and 0.2223 respectively.
Population |
N |
Na ± SD |
Ne ± SD |
I ± SD |
h ± SD |
n |
P (%) |
GST |
Nm |
P1 |
4 |
1.6280 ± 0.4845 |
1.4129 ± 0.3851 |
0.3524 ± 0.2883 |
0.2381 ± 0.2025 |
130 |
62.80 |
0.2223 |
1.7494 |
P2 |
5 |
1.7488 ± 0.4348 |
1.3947 ± 0.3356 |
0.3710 ± 0.2473 |
0.2419 ± 0.1751 |
155 |
74.88 |
||
P3 |
3 |
1.5362 ± 0.4999 |
1.3386 ± 0.3673 |
0.2981 ± 0.2873 |
0.1998 ± 0.1981 |
111 |
53.62 |
||
P4 |
5 |
1.7391 ± 0.4402 |
1.4422 ± 0.3547 |
0.3937 ± 0.2607 |
0.2622 ± 0.1848 |
153 |
73.91 |
||
P5 |
4 |
1.7729 ± 0.4199 |
1.5165 ± 0.3612 |
0.4391 ± 0.2591 |
0.2976 ± 0.1849 |
160 |
77.29 |
Table 5: Parameters of genetic diversity ascertained from pooled data of RAPD, DAMD and ISSR markers among five populations of Musa sp.;N = sample Size , Na = observed number of alleles , Ne = effective number of alleles , h = Nei's gene diversity , I = Shannon's Information index , n = number of polymorphic loci , P(%) = percentage of polymorphism , GST = diversity among populations , Nm = Gene flow , SD = standard deviation P1 = North Garo Hills, P2 = West Garo Hills, P3 =South Garo Hills, P4 =East Garo Hills, P5= South- West Garo Hills
Nei’s unbiased measures (Table 6) were also calculated to interpret the Genetic identity and Genetic distance amongst the populations. Nei’s Maximum (0.9402) was accorded between populations P2(WGH) and P4 (EGH) while Minimum (0.8252) genetic identity was observed among populations P1 (NGH) and P3 (SGH). Nei’s maximum genetic distance(0.1922) was recorded between populations P3 (SGH) and P1 (NGH) and minimum values (0.0617) were observed for populations P4 (EGH) and P2 (WGH). The AMOVA data generated shows a high level of genetic variation within populations (93%) and a little variation among the populations (3%) (Table 7). An UPGMA dendrogram based on the Nei's (1978) unbiasedgenetic diversity analysis was also generated (Figure 8) to ascertain the relationship among the five Musa populations of Garo Hills (P1 = North Garo Hills, P2 = West Garo Hills, P3 =South Garo Hills, P4 =East Garo Hills, P5= South-West Garo Hills).
Population ID |
P1 |
P2 |
P3 |
P4 |
P5 |
P1 |
**** |
0.8775 |
0.8252 |
0.8782 |
0.8956 |
P2 |
0.1307 |
**** |
0.8344 |
0.9402 |
0.9174 |
P3 |
0.1922 |
0.1810 |
**** |
0.8795 |
0.8643 |
P4 |
0.1299 |
0.0617 |
0.1284 |
**** |
0.9225 |
P5 |
0.1103 |
0.0862 |
0.1458 |
0.0806 |
**** |
Table 6: Nei's Unbiased Measures of Genetic Identity and Genetic distance. Nei's genetic identity (above diagonal) and genetic distance (below diagonal); (P1 = North Garo Hills, P2 = West Garo Hills, P3 = South Garo Hills, P4 = East Garo Hills, P5= South- West Garo Hills).The bold values above diagonal which signifies Nei’s Maximum (0.9402) and Minimum (0.8252) genetic identity, while the values in bold below the diagonal represent the Nei’s Maximum (0.1922) and Minimum (0.0617) genetic distance between the five populations.
Source |
Df |
SS |
MS |
Est. Var. |
% |
Among Pops |
4 |
159.460 |
39.865 |
2.322 |
7% |
Within Pops |
16 |
483.017 |
30.189 |
30.189 |
93% |
Total |
20 |
642.476 |
32.511 |
100% |
Table 7: Analysis of Molecular Variance (AMOVA) based upon collective data of SPAR (RAPD, ISSR and DAMD) markers for five populations of Musa sp.

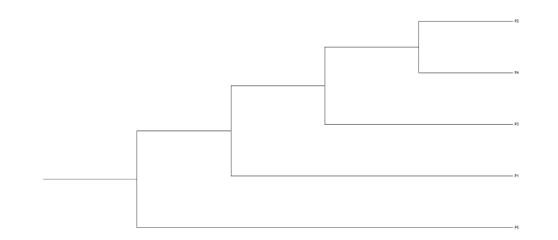

Figure 8: UPGMA (clustering based on Nei’s (1978) unbiased genetic diversity) dendogram highlighting inter-relationship among 21 genotypes of Musa sp. from five districts of Garo Hills (P1 = West Garo Hills, P2 = South-West Garo Hills, P3 = East Garo Hills, P4 = South Garo Hills, P5= North Garo Hills), Meghalaya (India).
Musa genotypes were studied to understand their morphological variations, majority of which showed significant differences among them. However, a few parameters like bract arrangement, the presence of pulp and its colour showed no difference among the genotypes. The PCoA graph generated, based on the studied metric traits of the genotypes (Figure 2) further confirmed the presence of high variation and inter-mixing among the Musa genotypes, from different populations. Apparently no reports about the quantum and range of variation in morphological traits of Musa collections of Garo Hills are available. Though Lamare and Rao (2015), observed and reported significant variation in DNA marker profiles, but did not record the morphological variations in Garo Hill populations. A critical appraisal of genetic variation has been undertaken to define the existing morphological variability.
Several technologies involving DNA-based molecular markers are known, which have proved to be powerful tools to unravel the genetic intricacies of plants as well as aid in the study of species inter-relationships of different populations [7,14,31]. Several studies have reported the reliability of molecular markers like RAPD, ISSR, DAMD in assessing the genetic information within individuals of a species [6,7,26]. In this study,these three markers were used individually as well as in combination (SPAR) to have a better and clearer understanding of the genetic diversity [15,26] among the collections from Garo Hills of Meghalaya, India. All the markers used have showed significant level of polymorphism. RAPD and ISSR have generated an exceptionally high level of polymorphism (100%), followed by DAMD at 96.67%. Parameters for evaluation of discriminatory efficacy of the markers were found to be significant for all the three markers. However, the data generated by combination of all the markers in SPAR analysis might be considered to be more reliable and meaningful to understand the genetic variation in the genus Musa.
The dendrograms gave the information regarding the inter-relations and evolutions of the various collected genotypes. Unlike the cultivated Musa varieties, wild Musa species are predominantly outbreeders, which maybe responsible for the inter-mixing of genotypes from various populations as observed from the dendrograms in this study. This may also result in the increasing variations within the populations [8,15,34]. The dendrogram generated by SPAR data revealed that the genotype SWGH-ABb has the longest branch and thereby may be very recently evolved. In contrast, genotypes SGH-RBa and WGH-TGb appeared to have the shortest branches, indicating that they evolved very early in the evolutionary timeline. The considerable gene flow among the genotypes is further established by the high Nm value (1.7494) obtained from the population diversity data.
The population P5 (SWGH) appears to be distinct from the other populations as it has the highest number of polymorphic loci(n), and subsequently the highest percentage polymorphism of 77.29%. This distinction of P5 is also reinforced in the dendrograms generated by individual as well as SPAR approach. Population, P3 from SGH, is observed to have the lowest number of polymorphic loci and percentage polymorphism of 111 and 52.62, respectively. This is in tandem with the observations of ISSR and SPAR dendrograms which demonstrated the SGH population as eldest and ancestral in evolution. P5 can hence be utilized to devise breeding and crop improvement programs for Musa sp. In an earlier study, Musa genotypes were collected from various regions of Meghalaya and variations existant among genotypes vis-à-vis altitudes they inhabit [15]. In this study, however, the genotypes were collected from various areas of Garo Hills only and hence there was no significant variation in the altitudes of the collected samples.
All the parameters for measurement of population genetics indicated noteworthy genetic variation and gene flow. Gene flow estimates are classified as low (if Nm<1), moderate (if Nm>1) and high (if Nm>4) [13]. In this study, value of Nm was found to be 1.7494 (Nm>1), which suggests moderate gene flow among the populations of Musa. This appreciable rate of gene flow might be a reason for the high level of intermixing of the geno types. The AMOVA values generated revealed higher genetic variation within populations (97%), as compared to variations among the populations. This type of high variation within the populations have been widely reported in case of outbreeders [8,15,34]. This variation is further established by the GST value (0.2223), which is an important parameter for determination of genetic diversity among the populations. The PCoA analysis of molecular marker data also showed high inter-mixing of the genotypes (Figure 9).
Figure 9: PCo Analysis of five populations comprising of 21 accessions of Musa sp. from five districts of Garo Hills (colour coded) generated by using the various physical parameters. The numbers indicate the collected samples (Table 1).
The study concludes that the data obtained from morphological and molecular studies, shows the prevalence of significant amount of variation among the various Musa genotypes of Garo Hills. The morphological parameters and the PCo analysis indicated variation as well as intermixing of the genotypes. The molecular markers effectively provided information regarding the genetic diversity, genetic identity and distance, and the phylogenetic relationships among the various collected genotypes of Musa sp. The concatenated data (SPAR) provided with a comprehensive and clearer image of the species inter-relationships and their diversity. The data generated can be used to devise effective breeding programs for preserving and improving the wild Musa genotypes which are available in the Garo hills of Meghalaya.
SRR and CPS planned and designed the research work. Survey and procurement of the plant materials were done by AH and PS. AH, SD and PS conducted the laboratory work. SD and SRR generated and analyzed the data. SD, AH, SRR and CPS interpreted the data and prepared the manuscript accordingly.
The authors extend their heartfelt gratitude to the Head, Department of Biotechnology and Bioinformatics, and Head, Department of Horticulture, North Eastern Hill University, Shillong for providing the facilities. The authors are thankful to Dr. Harish and Dr. Devendra Biswal, for help in finalising the manuscript. The authors are also thankful to the Ministry of Tribal Affairs, National Fellowship and Scholarship for higher studies of ST students (Awardee no.- 201718-NFST-MEG-00963) for funding the research work.
The authors declare no known competing interest.
Citation: Satyawada Rama Rao., et al. “Morphological Characterization and Genetic Diversity Analysis of wild Musa Collections from Garo Hills, Meghalaya by SPAR approach".Acta Scientific Agriculture 5.3 (2021): 12-24.
Copyright: © 2021 Satyawada Rama Rao., et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
