Carbon Dioxide Laser Endoscopic Surgery for Zenker Diverticulum; A First Reported Case in Malaysia

Syauqi MS1,2*, Ridwan AM1,2, Izani MS1,3 and AbdulRazak A1

1Department of Otorhinolaryngology Head and Neck Surgery, Melaka General Hospital, Ministry of Health, Malaysia
2Department of Otorhinolaryngology Head and Neck Surgery, University of Malaya, Kuala Lumpur, Malaysia
3Department of Otorhinolaryngology Head and Neck Surgery, University Sains Malaysia, Kubang Kerian, Malaysia

*Corresponding Author: Syauqi MS, Department of Otorhinolaryngology Head and Neck Surgery, University of Malaya, Kuala Lumpur, Malaysia.

Received: January 09, 2020; Published: May 11, 2021


 ; Zenker diverticulum (ZD) is an extremely rare disease of upper oesophagus especially in Malaysia. Common presentation is dysphagia, amid almost normal examination and endoscopic findings. Barium study is the gold standard investigation to diagnose it. Our aim is to report an extremely rare case of ZD and to proclaim to be the 1st centre which manage it with CO2 laser in Malaysia. We reported a case of a 68-year-male, presented to a tertiary medical centre then diagnosed as ZD, treated surgically via endoscopic transoral laser, a minimally invasive method with less complications as compared to conventional open surgical approach and had yielded tremendous outcome post-operatively.

Keywords: Zenker Diverticulum; Dysphagia; Endoscopic Laser Surgery


  ZD can be anatomically described as an out-pouching of both mucosa and submucosal layer originated between the posterior part of the oblique muscle of inferior constrictor muscle and horizontal muscle fibres of cricopharyngeal muscle [1-4]. It is considered as a false type or pseudo diverticula, as it is devoid of the muscularis layer [3]. Clinically, the symptoms depend on the size the diverticulum [4]. The classical symptom is dysphagia to both solid and liquid [1-4]. Other related symptoms are, regurgitation, chronic cough, choking and in severe cases, patient may be presented with additional symptoms of oesophageal obstruction, cachexia and aspirations [4]. Barium study is the gold standard in diagnosing this disease [5]. Other modalities include esophagogastroduodenoscopy, ultrasound, though are not warranted in all cases, but they are beneficial to rule out other differentials and possible coexisting diseases [6]. The sole definitive treatment for this is surgery [1-7]. Medical treatments are mainly supportive which include proton pump inhibitor and sodium alginate suspension for symptomatic relief [8].

Case Report

  68-year-old gentleman with premorbid hypertension and bronchial asthma presented with chronic dysphagia and foreign body throat sensation for 2 years especially when taking solid food. He is able to tolerate fluids better than solid with episodes of choking during swallowing. Oral cavity, throat, neck examination and flexible scope was otherwise normal. We proceeded with barium study with later the result pointed the diagnosis of ZD (Figure 1).

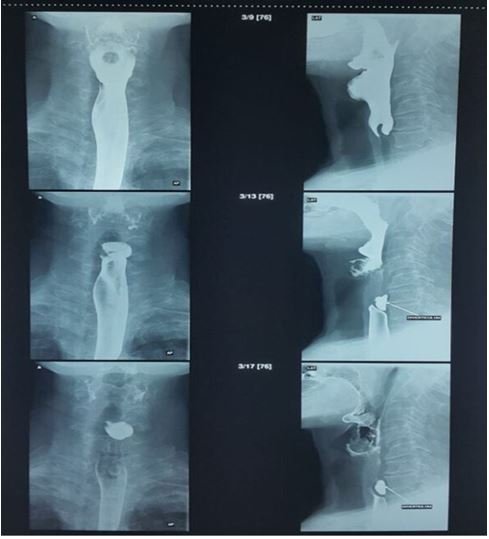

Figure 1: Shows the barium swallow films of the patients with central hypoechoic defect/ pouch at the level of cricopharynx.

  He underwent endoscopic CO2-laser diverticulotomy under general anesthesia. Intraoperatively, a posterior outpouching diverticula sac over the C6-C7 level of cervical oesophagus was noted. The neck of this diverticulum was ablated until the fundus resulting a widened space diverticulum that formed a single cavity with the oesophagus. Nasogastric tube was inserted post operatively (Figure 2 and 3).

Figure 2: Shows series of intraoperative pictures of the ZD, with laser surgery aimed at the neck of the diverticula forming a widened single cavity with the oesophagus.

Figure 3: Shows the post-operative ablated ZD with CO2 laser.

  Post-operatively patient was well and comfortable with no complications noted. Nasogastric tube was taken off and he was able to swallow without aspiration. He was discharged home day 2 postoperatively. During subsequent clinic visit the patient has fully recovered and has no more dysphagia nor choking during meal.

Discussion and Conclusion

  ZD is also known as hypopharyngeal diverticulum or pharyngeal pouch that develop in the upper oesophagus causing dysphagia and regurgitation of food [1]. It is commonly seen in elderly between the 6th and 8th decade of life with prevalence less than1% and incidence 2 per 100,000 annually [1,2]. Male to female ratio is about 1.5:1 [1]. It is an acquired lesion with the aetiology still not fully understood [2,3].

  ZD was first described by Friedrich von Zenker back in 1877 but was first resected surgically by Wheeler in 1886 [7]. Since then, various surgical techniques have evolved, beginning with open approaches such as diverticulectomy, diverticuloplexy, diverticular inversion, cricopharyngeal myotomy to newer minimally invasive endoscopic approaches [4,7,8]. Endoscopic laser treatment in managing ZD was first introduced by Van Overbeek in 1981 [4]. The proposed pathophysiology has been suggested due to the increased intraluminal pressure during swallowing against inadequate relaxation of cricopharyngeus muscle with incomplete opening of upper esophageal sphincter resulting protrusion of the mucosa [1]. This sac-like expulsion occurs dorsally at the pharyngoesophageal junction through the Killian's dehiscence [1].

  The fundamental principal of open surgical approach is the excision of the pouch followed by cricopharyngeal myotomy [4,8]. In contrast, endoscopic approach aims to widen the diverticula opening into the oesophagus by a complete myotomy and full length mucosal incision of the tissue bridge between the diverticular pouch and oesophagus using either carbon dioxide laser, stapling device, electrocautery or harmonic scalpel [4,8]. The relative advantages of endoscopic over open approach can be demonstrated in the following table [1-8] (Table 1). Nevertheless, there are few limitations of endoscopic that might require conversion to external approach which include high BMI patient, short neck, and decreased hyoid-mental distance [4].

Open or External


Complications number



Hospital Fees



Cervical Scar



Conversion to open approach



Neck Extension






Anatomic Limitations(Rigid neck,trismus)



Small Diverticulum

Not Applicable


Large Diverticulum


Not applicable


Difficult, higher risk

Easy, safe

Special Technique



Dental Injury



Recurrent Laryngeal Nerve Injury

Higher risk

Lower risk

Table 1: The relative advantages of endoscopic over open surgical or transcervical approach.

  We had used Lumenis carbon dioxide laser with ‘super-pulse delivery in repeated mode’ to ablate the neck of diverticulum until the fundus, thus forming a widened common single cavity with the oesophagus. From our experience, the advantages of carbon dioxide laser technique above all include better visualization of the diverticular bridge, less thermal injury, less pain and complication and better post-operative care [4,7]. Plzak., et al. has demonstrated high success rate of 97% with this technique and merely 3% of recurrence and morbidity [4].

Ethical Declaration

This article and the process of the production including informed consent are according to local ethical guideline and Declaration of Helsinki.

Competing Interest Declaration

None. Our interest of this article is fully academic.

Funding Declaration

None. This is a self-sponsored article mainly by the author correspondence.


  Special regards to our supervisor, Datuk Dr. Abd Razak Bin Ahmad, Senior Head and Neck Consultant and Head of Otorhinolaryngology Head and Neck Surgery, Melaka General Hospital for all his guidance and wisdom during our training there, as well as the management of the Melaka General Hospital where this article was produced, for giving us the permission of using the facilities and support.


  1. Bizotto A., et al. “Zenker's Diverticulum: Exploring Treatment Options”. ACTA Otorhinolaryngologica Italica 4 (2013): 219-229.
  2. Aghajanzadeh M., et al. “Zenker's Diverticuum: Report Rare Presentation and Management Of Six Cases”. Gastroenterol Hepatol Open Access 6 (2016): 1-5.
  3. Bist S., et al. “Zenker's Diverticulum-A Case Report”. Indian Journal Otolaryngology Head Neck Surgery 61 (2009): 79-81.
  4. Plzak J., et al. “Clinical Study Zenker's Diverticulum: Carbon Dioxide Laser Endoscopic Surgery”. BioMed Research International (2014): 1-5.
  5. Nano-Guzman C., et al. “Zenker's Diverticulum: Diagnostic Approach And Surgical Management”. Case Report In Gastroenterology 8 (2014): 346-352.
  6. Leite T., et al. “Pharyngoesophageal Obstruction on The Killian-Laimer Triangle By Zenker's Diverticulum”. Case Report and Clinical Significance 6 (2015): 316-319.
  7. Yuan Y., et al. “Surgical Treatment of Zenker Diverticulum”. Digestive Surgery 30 (2012): 207-218.
  8. Sayles M., et al. “Case Report Zenker's Diverticulum Complicating Achalasia: A 'Cup-And-Spill Oesophagus”. BMJ (2013): 1-5.


Citation: Syauqi MS., t al. “Carbon Dioxide Laser Endoscopic Surgery for Zenker Diverticulum; A First Reported Case in Malaysia”. Acta Scientific Otolaryngology 3.6 (2021): 31-34.


Copyright: © 2021 Syauqi MS., t al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
