Vladimir Zaichick*
Radionuclide Diagnostics Department, Medical Radiological Research Centre, Russia
*Corresponding Author: Vladimir Zaichick, Radionuclide Diagnostics Department, Medical Radiological Research Centre, Russia.
Received: February 02, 2021; Published: March 16, 2021
Citation: Vladimir Zaichick. “Beryllium Content of the Normal Human Prostate Gland: A Systematic Review”. Acta Scientific Microbiology 5.3 (2021): 78-85c.
The knowledge concerning etiology and pathogenesis of most prostatic malfunction and pathologies is very limited. Notwithstanding advances in medicine, the diagnostics of benign hypertrophic and cancerous prostate has relentlessly increased in intricacy and inconsistency. A supposal has been made that beryllium (Be) level in prostate gland may aid in resolving these problems and especially as a biomarker of prostate cancer. As a result in many studies the normal prostatic Be measurements have been made. In present review we analyze data published concerning Be prostatic levels in healthy persons. In total 2161 papers in the literature of the years dating back to 1921 were authenticated in such databases as: PubMed, Scopus, the Cochrane Library, Web of Science and ELSEVIER-EMBASE. Obtained information was subject to an extraction both the Be content ranges and means. In such a way the discrepancy of published Be level of normal glands was estimated. From the articles analyzed, 14 were separated for the impartial evaluation of results from their 645 healthy subjects. Prostatic Be contents (on a wet mass basis) spanned the interval from 0.000155 mg/kg to <0.03 mg/kg with 0.000168 mg/kg as the median of their means. The results covered a wide range of values and the sample was small, hence it is desirable that further investigations with strong quality control of results be performed.
Keywords: Beryllium; Human prostate gland; Normal prostatic tissue; Biomarkers.
PCa: Prostate Cancer; BPH: Benign Prostatic Hyperplasia; TE: Trace Element; IARC: International Agency for Research on Cancer; US EPA: U.S. Environmental Protection Agency; ICP-MS: Inductively Coupled Plasma Mass Spectrometry.
Amongst the many pathological prostatic conditions, prostatic carcinoma (PCa), chronic prostatitis and benign prostatic hyperplasia (BPH) are very frequently encountered, especially in the elderly [1-3]. Their causes and pathogenesis are poorly understood. Moreover, despite biomedical advances, the the diagnostics of benign hypertrophic and cancerous prostate has become gradually more complicated and contentious. An improvement of this situation, especially recognition of relevant risk factors and the disorders’ etiologies can allow great reduction in the incidence of these prostatic disorders.
In our previous investigations the participation of trace elements (TEs) in the function of the prostate gland was indicated [4-15]. It was also found that content of TEs in prostatic parenchima, including beryllium (Be), can play a noticeable role in etiology of PCa [16-21]. Furthermore, it was shown that the alterations of some TE contents and Zn/Be content ratios in prostate parenchima can be helpful as bio-indicators [21-28].
For the first time low levels of Be in human prostatic tissue (<0.03 mg/kg of wet tissue) was indicated in studies published almost 60 years ago [29]. This finding allowed deduce inference that the prostate can accumulate Be, since the content of metal in glands was at least one order of magnitude higher the blood reference content (0.001 mg/L) [30]. Moreover, experimental and epidemiological results identified that Be should be considered as genotoxic carcinogens [20,21,31,32]. In accord with the International Agency for Research on Cancer (IARC) and U.S. Environmental Protection Agency (US EPA), Be is classified as Group 1 and Group A human carcinogens, respectively [33,34]. These materials facilitated more extensive considerations of the Be level of prostatic tissue of healthy persons, as well as of patients with different prostatic disorders, including hypertrophy and malignancy.
The impacts of TEs, including Be, are depended on their level in tissues and fluids. Recorded observations range from a deficiency, through normal function as biologically active components, to an imbalance, when excess of one element interferes with the function of another, to pharmacologically active levels, and finally to toxic and even life-threatening contents [35-37]. In this context, until now there are no data on any biological function of Be in organisms, but a lot of publications testify to adverse health effects in different organs or tissues, including malignancy, of exposure to low doses of this metal and its compounds [21,30,32,33,38]. However, it is as yet incomprehensible what precise mechanism is responsible for Be carcinogenicity [21,38].
By now, a few publications have presented the level of Be content in tissue of “normal” and affected prostates. However, subsequent research works has been considered necessary to provide a practical reference data of Be contents in “normal” and affected gland, as the results of various investigations demonstrate some distinctions.
Our review addresses the importance of Be contents in prostate as an indicator of the gland’s condition. Therefore, we systematically reviewed all the available relevant articles and performed a statistical analysis of Be level of “normal” prostates, which may provide valuable insight into the etiology and diagnosis of organ diseases.
Aiming at finding the most relevant publications for this review, a thorough comprehensive web search was conducted by consulting the PubMed, Scopus, the Cochrane Library, Web of Science and ELSEVIER-EMBASE databases, as well as from the personal archive of the author collected between 1966 to 2020, using the key words: prostatic trace elements, prostatic Be content, prostatic tissue, and their constellation. For example, the search terms for Be content were: “Be content”, “Be level”, “Be mass fraction”, “prostatic tissue Be” and “Be of prostatic tissue”. The language of the paper was not restricted. The titles from the search results were examined thoroughly and determined to be acceptable for potential inclusion criteria. Also, references from the selected publications were evaluated as further search instruments. Relevant references noted for the each selected paper were also examined for inclusion.
Eligibility criteria Inclusion criteriaOnly articles with quantitative results of Be prostatic level were accepted for further examination. Publications were accepted if the control groups were healthy men with no history or evidence of urological or other andrological disease and Be contents were measured in samples of gland.
Exclusion criteriaArticles were excluded if they were case reports. Investigations involving persons that were Be occupational exposed, as well as subjects from Be contaminated regions were also excepted.
Data extractionA standard extraction of results was applied, and the following available variables were taken out from each article: method of Be measurement, number and ages of healthy subjects, sample preparation, mean and median of Be content, standard deviations of mean, and range of Be contents. Abstracts and whole text of papers were reviewed independently, and if the results were different, the texts were checked once again until the distinctions were eliminated.
Statistical analysisResults of all investigations were stitched together based on means of Be contents in “normal” prostate. The papers were examined and “Median of Means” and “Range of Means” were exploited to evaluate heterogeneity of Be levels. The impartial analysis was performed on results from the 14 articles, with 645 persons.
Data on Be contents in prostatic tissue in normal and pathological conditions are of obvious interest, not only to clarify the etiology and pathogenesis of prostatic disorders, but also for their diagnosis, particularly for malignancy detection and PCa risk prognosis [27,28,35]. Thus, it dictates a need for reliable values of the Be contents in the prostate of apparently healthy persons, ranging from young adults to old men.
Possible articles relevant to the keywords were retrieved and screened. A total of 2161 papers were primarily obtained, of which 2147 irrelevant publications were excluded. Thus, 14 articles were ultimately selected according to eligibility criteria that determined Be contents in “normal” glands (Table 1) and these 14 studies [9,13,14,27,29,39-47] arranged the material on which the review was founded. A number of results for Be contents in the cited references were not expressed on a wet mass basis. However, we recalculated these results using the medians of published values for water - 83% [48-51] and ash - 1% contents (on a wet mass basis) in “normal” prostates of adult males [50,52-54].
Reference |
Method |
n |
Age range years |
Sample preparation |
Be |
|
M ± SD |
Range |
|||||
Zakutinsky., et al.1962 [29] |
- |
- |
- |
- |
<0.03 |
- |
Zaichick., et al. 2012 [39] |
ICP-MS |
64 |
13-60 |
AD |
0.000168 ± 0.000066 |
0.00012-0.00044 |
Zaichick., et al. 2013 [9] |
ICP-MS |
16 |
20-30 |
AD |
0.00051 ± 0.00085 |
- |
Zaichick., et al. 2014 [40] |
ICP-MS |
28 |
21-40 |
AD |
0.000155 ± .0.000044 |
0.00012-0.00031 |
|
|
27 |
41-60 |
AD |
0.000160 ± .0.000048 |
0.00012-0.00029 |
|
|
10 |
61-87 |
AD |
≤0.00016 |
<0.00012-0.00036 |
Zaichick., et al. 2014 [13] |
ICP-MS |
16 |
20-30 |
AD |
0.000162 ± .0.000054 |
- |
Zaichick., et al. 2014 [14] |
ICP-MS |
50 |
0-30 |
AD |
0.0007 ± 0.0011 |
- |
|
|
29 |
0-13 |
AD |
0.0013 ± 0.0014 |
- |
|
|
21 |
14-30 |
AD |
0.00022 ± 0.00012 |
- |
Zaichick 2015 [41] |
ICP-MS |
65 |
21-87 |
AD |
0.000158 ± .0.000054 |
- |
Zaichick., et al. 2016 [42] |
ICP-MS |
28 |
21-40 |
AD |
0.000182 ± 0.000085 |
- |
|
|
27 |
41-60 |
AD |
0.000202 ± 0.000083 |
- |
|
|
10 |
61-87 |
AD |
0.000197 ± 0.000133 |
- |
|
|
37 |
41-87 |
AD |
0.000201 ± 0.000097 |
- |
Zaichick., et al. 2016 [43] |
ICP-MS |
32 |
44-87 |
AD |
0.000160 ± .0.000072 |
- |
Zaichick., et al. 2016 [44] |
ICP-MS |
37 |
41-87 |
AD |
0.000160 ± .0.000073 |
- |
Zaichick., et al. 2017 [27] |
ICP-MS |
37 |
41-87 |
AD |
0.000160 ± .0.000073 |
- |
Zaichick., et al. 2017 [45] |
ICP-MS |
37 |
41-87 |
AD |
0.00019 ± 0.00008 |
0.00009-0.00042 |
Zaichick 2017 [46] |
ICP-MS |
37 |
41-87 |
AD |
0.000160 ± .0.000060 |
0.00012-0.00036 |
Zaichick., et al. 2019 [47] |
ICP-MS |
37 |
41-87 |
AD |
0.000160 ± .0.000060 |
0.00012-0.00036 |
Median of means |
0.000168 |
|||||
Range of means (Mmin - Mmax), |
<0.00012 – <0.03 |
|||||
Ratio Mmax/Mmin |
(<0.03/0.000155) = <194 |
|||||
All references |
14 |
Table 1: Reference data of Be mass fractions (mg/kg wet tissue) in “normal” human prostatic tissue.
M – arithmetic mean, SD – standard deviation of mean, ICP-MS – inductively coupled plasma mass spectrometry, AD – acid digestion.
Table 1 summarizes general results from the 14 publications. The retrieved studies involved 645 persons. The ages of men were available for 13 papers and ranged from 0-87 years. Information about the analytical technique and sample preparation used was available for 13 articles. In all studies Be contents were determined by inductively coupled plasma mass spectrometry (ICP-MS). The method used was the destructive analytical technique, as it needs in sample acid digestion for a measurement.

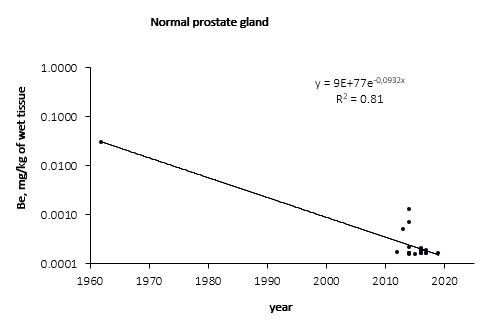

Figure 1 illustrates the data set of Be determinations in 14 studies performed from 1962 to 2020.
Figure 1: Data on Be content in normal prostate tissue reported from 1962 to 2020.
The range of means of Be contents published for “normal” prostate varies widely from 0.000155 mg/kg [40] to <0.03 mg/kg [29] with median of means 0.000168 mg/kg (on a wet mass basis) (Table 1). In one study in the age group 61-87 years old persons the content of Be was quantified in a few prostates, because level of this element in all other investigated glands was under detection limit (DL) [40]. In this investigation for the group of old men the possible upper limit of the mean (≤M) for prostatic Be content was calculated as the average mass fraction, using the value of DL instead of the individual value when these latter was found below the DL:
where Ci is the individual value of Be mass fraction in i-sample, ni is number of samples with the mass fraction higher than the DL, nj is number of samples with the mass fraction lower than the DL, and n = ni + nj is number of investigated samples.
This variability of reported means (0.000155-<0.03 mg/kg of wet tissue) can be interpreted by a dependence of Be mass fraction on many factors, including analytical technology irregularity, differences in “normal” tissue definitions, age, ethnicity, diet, smoking, alcohol intake, possible inhomogeneous distribution of the metal throughout the gland volume, consuming supplemental Zn and Se, and others. Not all these factors were strongly controlled in the published investigations. Furthermore, the very short list of published data not allowed us to estimate the influence of all these factors on Be mass fraction in “normal” prostate.
Analytical methodThe trend line of Be mass fraction data in “normal” gland (Figure 1) illustrated that an improvement of analytical techniques during last almost 60 years impacted noticeably on published results. Most probably the leading cause of inter-observer variability was a poor sensitivity of analytical methods and a lack of strong quality control of result in old study published in 1962 [29].
In all reported studies destructive analytical method ICP-MS was applied. This analytical technique needs in acid digestion of the investigated samples at a high temperature. There are distinct proofs that use of this processing causes some quantities of TEs to be lost [35,55,56]. And conversely, the Be content of chemicals applied for tissue decomposition can contaminate the prostatic tissue samples. Thus, when using ICP-MS with complete acid digestion of the sample, it is necessary to allow for the losses of TEs. Then there are contaminations by TEs during acid digestion of the sample, which needs in addition of some chemicals. It is possible to avoid these problems by utilizing non-destructive methods, but up to now there are no analytical techniques which allow quantify Be level in “normal” prostate without sample decomposition. It is, therefore, logically to assume that the strong quality control of results is very significant factor for using the Be level in prostate as bio-indicator.
AgeIn a few studies, which applied the comparison of different age groups or the Pearson’s correlation between age and Be mass fraction in prostate, it was no found a remarkable alteration of Be level with increasing age [40-42]. These facts allowed us to assume that age does not impact on the Be level of “normal” prostate gland.
Androgen-independence of prostatic Be levelsThere was not found a meaningful difference between the means of prostatic Be content in the group of teenagers before puberty and the group of post-pubertal teenagers together with young adults [9,13,14]. These data allowed us to suppose that there are no any associations between the Be mass fraction in “normal” prostates and the level of androgens. However, publications on the correlation between the Be level in “normal” prostatic tissue and the concentration of androgens in blood were not found.
Be intakeThe general population can be exposed to low levels of Be through consumption of food, ingestion of drinking water, and inhalation of ambient air [30,33,34,57]. One may also be exposed to Be through skin contact, with plastics, sports equipment, instruments, gemstones and other Be-containing things [33,58]. Be exposures were also reported as a result of smoking (active and passive), because Be as a chemical component, occurs naturally in tobacco and may be inhaled from cigarette smoke [30,58-60]. Another source of exposure to Be may be Be-containing dental alloys used in dental fixed prosthodontics [61,62].
Be is considered as elements with an extremely high toxic potency for human and animal organisms. Moreover, Be is considered as a latent health hazard with potential risk of toxicity in humans within regions of "natural" pollution by this element [57,58,63,64]. In order to prevent Be poisoning, its content must not exceed the safe limits for food, drinking water, and air.
An average Be daily intake was estimated to be 0.005-0.100 mg/day [30]. Health-based guidance values used for risk characterisation of exposures to Be was accepted to be 0.002 mg/kg body weight/day [65]. Most foods have Be concentrations below 0.100 mg/kg [30], but, for example, in New Zealand Be level in foods is almost five times lower and it does not exceed 0.022 mg/kg [66]. Be contents in dairy products, meat, poultry, eggs, vegetables, fruits and fruit juices, nuts, beverages, including vine, and other foods depend on this metal level in soil [58] and the reported mass fractions ranged from 0.001mg/kg in soya milk to 0.022mg/kg in salad dressing [66,67]. There are natural geochemical provinces with anomalous high levels of Be in soils [67] and areas with mainly anthropogenic sources of Be contamination [68]. For example, the average of Be content in U.S. soil is 0.63 mg/kg and to range from less than 1 to 15 mg/kg [30]. Marine organisms may be other dietary sources of Be [58].
Concentration of Be in waters of different types variate very widely. The average concentration in drinking water and surface water is 0.00019 mg/L. and 0.0019 mg/L, respectively [30]. Average concentrations of Be in U.S. tap water and bottled water are determined to be 0.013 and less than 0.1 µg/L, respectively [30] At present, no health-based guideline values exist for Be in drinking and tap water [58].
Be concentration in air can be traced from atmospheric deposition and it is varied very widely. For example, data on the average Be concentration in air of UK published in 2016 (0.00787 ng/ m3) [69] are four times lower than the average concentration of Be in air of the United States (0.03 ng/m3) [30]. In air of U.S. cities the average concentration of Be was almost one order of magnitude higher (0.2 ng/m3) [30]. However, in air of some workplaces the Be concentration can be more than four orders of magnitude higher than this value [58].
Other potential sources of Be exposure include active and passive tobacco smoking. Be presents in cigarette smoke and poses health threats to the life of smokers as a result of direct inhalation and at the same time elevates health risks to non-smokers present in the vicinity of smokers [60]. Range of this metal mass fraction reported in cigarette tobacco produced in U.S. was estimated to be 0.016-0.017 mg/kg tobacco [59].
Furthermore, over the last decades the use of Be-containing dental alloys in dental fixed prosthodontics, has created an entirely new source of internal Be exposure [61,62]. Corrosion and wear produce soluble metal ions and metal debris in the form of huge numbers of wear nanoparticles, with systemic dissemination in human body.
Aside from the naturally occurring sources, exposure of people to Be is limited to inhalation and dermal contact during occupational processes. The exposures occur mainly during production of Be pure metal, Be oxide and an alloy with copper, aluminum, or nickel [70].
Be content in body fluids, tissues and organsThe total content of Be in the body of adults is about 0.036 mg [71]. A quarter of this amount (about 0.009 mg) is located in the skeleton, which is the major storage pool for long-term Be accumulation [30,71]. Among soft tissues of human body principle organs of Be retention are lung, lymph nodes, liver, and kidneys [71-73]. Information on Be content in human organs and tissues is very limited. Baumgardt., et al. reported range of Be contents (0.0003-0.0045 mg/kg of wet tissue) in the 125 samples of lung which were obtained from the subjects exposed only to environmental levels [74]. Reported Be levels in whole blood of healthy persons 0.00048-0.00071 mg/L [75] are below data for Reference Man (0.001 mg/L) [30]. In recent study the mean Be content in blood plasma was estimated to be 0.00007 ± 0.00003 mg/L [76]. Since the median of prostatic Be content means obtained in the present study (0.000168 mg/kg of wet tissue) almost equals the metal level in lung and more than two times higher the blood plasma level, we can conclude that the prostate gland is also a target organ for Be.
Be, as all other natural chemical elements of the Periodic System, presents in all components and objects of biosphere [35,77,78]. During the long evolutional period the Be intakes in organisms were more or less stable and organisms were adopted for such environmental conditions, but, as was mentioned above, until now there are no data on any biological function of Be in organisms [79]. The situation with Be presence in biosphere began to change after the industrial revolution, especially over the last 100 years. Although Be was discovered in 1798, it only became commercially significant in the 1920s [80]. Be is lighter than aluminum and six times stronger than stainless steel [80]. Because of its strength, electrical and thermal conductivity, corrosion resistance, and nuclear properties, Be products are applied in the sphere of the nuclear weapons, aerospace, and atomic energy, as well as in automotive, electronics, and medical industries [63].
Be as pure metal is used to make components in aircraft, X-ray equipment, space optics and precision instruments, satellite structures, missile parts, neutron reflectors, nuclear weapons, fuel containers, rocket propellants, navigational systems, heat shields, mirrors, high-speed computers, audio components, and is also used as an acid catalyst in organic reactions [58]. Be compounds are used to produce Be metal and Be-containing alloys with cooper (4-4.25% Be), aluminum (20-60% Be) and nickel, in nuclear reactors, high-temperature reactor systems, glass-making, high-technology ceramics, electronic heat sinks, electrical insulators, microwave oven components, gyroscopes, military vehicle armor, rocket nozzles, crucibles, nuclear reactor fuels, thermocouple tubing, lasers, high-density electrical circuits, automotive ignition systems, and as a catalyst for organic reactions, an additive to glass, ceramics, and plastics, construction materials for automobiles, computers, sports equipment (e.g., golf clubs and bicycle), dental bridges, springs, nonsparking tools, submarine cable housings and pivots, wheels, pinions, telecommunications devices etc. [58].
Thus, metallic Be, Be-contained alloys and Be compounds are ubiquitously distributed in environment and food, water, and air everywhere contain this element. Besides the abundant natural sources of Be, there are a large number of industrial producers of Be to the soil (through atmospheric emissions originating from residues from coal, oil, and gas combustion, power plants, aluminum and other non-ferrous metal production, urban refuse, mine tailings, smelter slag, waste), water (through irrigation and industrial liquid waste, livestock dips, and wastewater sludge application), and air (Be may be released from residues from coal, oil, gas and waste combustion, power plants, aluminum and other non-ferrous metal production, urban refuse, mine tailings, smelter slag) contamination [33,34,58,70]. The anthropogenic emission of Be was estimated as 187 tons annually [33,34]. Interestingly remark, that natural sources of Be release to the atmosphere, such as windblown dust and volcanic particles, are estimated to account for 5.2 tons per year, or 2.6% of total emissions [33]. From the polluted environment this metal is subsequently introduced into the food chain and for the general population, the food is the main source of exposure to Be [33,34,58,70].
Be is an important product in the world industry. The world production of Be in 2019 was estimated to be 260 tons [81]. The world's largest producers are U.S. (170 tons) and China (70 tons). Since the use of Be is linked to the rapidly developing modern technologies, we can suppose that over the years, the need of industry in this metal and its components has increased significantly and would continue to increase in the future. Some estimates expect demand to grow to over 450 tons by 2030.
As was mentioned above, an ingestion or inhalation of Be low dose by humans can cause a variety of disorders. Acutely it causes such disorders as pneumonitis, cough, chest pain, dyspnea, pneumonia, conjunctivitis, rhinitis, pharyngitis and others [58]. Chronically, it results in sarcoid-like granulomata mainly in the lungs (chronic beryllium disease) and is occasionally subcutaneous [58,63,70,82]. Furthermore, as was shown in the experimental studies, Be and Be compounds are cytotoxic and genotoxic [21,30,31,33,34]. Moreover, an increase in potential risk of lung cancer and tumors of the central nervous system was observed among workers exposed to Be [20,32,64]. Precise molecular mechanisms by which this metal causes healthy cells to transform to malignant states have yet to be fully defined [21,31,38,83].
Thus, for unpolluted regions, according our systematic review, there are no information could explain the variability of reported means for “normal” prostatic Be content from 0.000155 mg/kg to <0.03 mg/kg of wet tissue. Moreover, prostatic Be contents demonstrated large variations among individuals, but reasons of these variation remain unknown. It is, therefore, reasonable to assume from results of our review that inaccuracy of analytical techniques employed caused so great variability of reported means for prostatic Be contents. This conclusion was supported the fact that the Certified Reference Materials for quality control of results were not applied in old investigations, which data were reflected by Zakutinsky., et al. [29].
There are some limitations in our review, which need to be taken into consideration when interpreting the obtained results. The sample size of each reported investigation was sometimes relatively small (from 10 to 65), and a total of 645 “normal” prostate glands were analyzed from all 14 articles. As such, it is difficult to draw definite conclusions about the reference value of the Be level in “normal” prostate as well as about the clinical value of the Be content in “normal” prostates as a bio-indicator.
The present systematic review is a comprehensive study regarding the determination of Be content in “normal” human prostates. With this knowledge Be levels may then be considered as a bio-indicator for the recognition of prostate disorders and primary such as PCa. The review has demonstrated that value of Be content in “normal” prostates depends on many unknown factors. Because of the uncertainties we have outlined, we recommend other primary studies with the strong quality control of results be performed.
