The Role of Polyetheretherketone (PEEK) Polymer in Dentistry - A Review

Majji Vasavi1, Gurram Vijay Kumar1, MC Suresh Sajjan2, Rama Raju AV3, Bheemalingeswararao D4 and K Chandrasekharan Nair5*

1Post Graduate Student, Department of Prosthodontics, Vishnu Dental College, Bhimavaram, AP, India
2Professor and Principal, Department of Prosthodontics, Vishnu Dental College, Bhimavaram, AP, India
3Professor and Vice Principal, Department of Prosthodontics, Vishnu Dental College, Bhimavaram, AP, India
4Professor, Department of Prosthodontics, Vishnu Dental College, Bhimavaram, AP, India
5Professor Emeritus, Department of Prosthodontics, Sri Sankara Dental College, Akathumuri, Trivandrum, Kerala, India

*Corresponding Author: K Chandrasekharan Nair, Professor Emeritus, Department of Prosthodontics, Sri Sankara Dental College, Akathumuri, Trivandrum, Kerala, India.

Received: June 10, 2021; Published: : June 29, 2021

Citation: K Chandrasekharan Nair., et al. “The Role of Polyetheretherketone (PEEK) Polymer in Dentistry - A Review". Acta Scientific Dental Sciences 5.7 (2021): 128-137.

Abstract

  Evolution of scientific knowledge has brought forth numerous materials in Prosthetic dentistry. Poly ether ether ketone (PEEK) is one such material that finds popular use in Prosthodontics. PEEK is a semi-crystalline linear polycyclic thermoplastic which is expected to substitute many metals in the family of biomaterials. PEEK can find a place in implantology as dental implant, superstructure or implant abutment. PEEK has proven its versatility in a very short span of time and has found a space in prosthetic advancements. This article reviews the characteristics of PEEK which are suited for the present and futuristic contexts of the development of dentistry.

Keywords: PEEK Implants; Polyether Ether Ketone (PEEK); Fixed Partial Denture Framework; RPD Framework; Modified PEEK Polymer; Carbon Fiber Reinforced-Poly Ether Ether Ketone (CFR-PEEK); Obturator; Dental Implant

Abbreviations

PEEK: Polyether Ether Ketone; CFR-PEEK: Carbon Fiber Reinforced-Polyether Ether Ketone

Introduction

  Many polymers are currently available, such as Polytetrafluoroethylene (PTFE), Poly methylmethacrylate (PMMA), Polylactic acid(PLA), Ultra high molecular weight polyethylene(UHMWPE), Poly glycolic acid (PGA), and only a few for bone replacements. Most of the polymers can absorb liquids, swell, leach unwanted products and the -properties could be affected by sterilization [1-3]. In 1978 English scientists developed PEEK. In the 1980s it was commercialized for industrial applications viz. the fabrication of aircrafts, blades of turbine, pistons, insulation for cables, bearings and compressor plate valves [4]. By the late 1990s, PEEK emerged as the leading thermoplastic replacement for metallic components to be used in trauma and orthopaedic treatment. In 1992 PEEK has found a place in dentistry as aesthetic abutments and later as dental implants. Later many changes have been brought in composition to modify and improve the working characteristics of implants [5].

  PEEK is a semicrystalline, polycyclic, sulfonated aromatic high- temperature thermoplastic polymer with a linear structure. It belongs to the family of polyaryletherketone. This material is obtained by binding the ketone and ether functional groups between aryl rings. It is tan-coloured in its pure form. The monomer unit of ether ether ketone monomer polymerizes via step-growth dialkylation reaction of bis-phenolates to form polyetheretherketone. A standard synthesis route for PEEK is by the reaction between 4,40 -difluorobenzophenone and disodium salt of hydroquinone in a polar solvent such as diphenyl sulphone 300 8C. Modification of PEEK is also possible by the addition of functionalized monomers (pre-polymerization) or post-polymerization modifications by chemical processes such as sulphonation, amination and nitration [6]. They are produced in three viscosities - high, medium and low- with the same formula (-C6 H4 -OC6 H4 -O-C6 H4 -CO-) n (Figure 1). PEEK gets its strength from the aromatic chain of ring structure. It is highly inert and hence resistant to chemical erosion [7,8].

Figure 1: Chemical structure of PEEK
(Bredent BioHPP catalogue)

Advantages of peek [9]:
  • Good dimensional stability.
  • High mechanical properties, tough and durable,
  • Melting point 340°C.
  • Glass transition temperature: 143 °C
  • Good frictional and wear resistance,
  • Elastic modulus is similar to bone.
  • High-temperature resistance.
  • Metal-free hence no metal allergy and no metallic taste.
  • Digitally designed to match the patient's anatomy.
  • Pure material, no additives, no colouring.
  • No abrasion of the antagonist.
  • No veneer chipping, no framework fracture.
Physical and mechanical properties

  The characteristic molecular chain configuration of PEEK allows for enhanced physical and mechanical properties in comparison to other polymers. A summary of physical and mechanical properties of PEEK is given in table 1.

Mechanical properties

E modulus - 4,000 Mpa

Flexural strength - >150 Mpa

Water absorption - 6.5g/mm3

Water solubility - <0.3g/mm3

Breaking load tests on three-unit FPDs

Max stress without fracturing - >1,200 N (no cycling)

Max stress without fracturing (mechanical and thermal cycling) - >1,200 N

Other properties

Melting range Approximately - 340℃

Bond strength - > 25 Mpa

Density - 1320 kg/m3

Hardness - 110 HV

Table 1: Physical and mechanical properties for PEEK [10-12].

Solubility

  The solubility of peek is 0.5w/w%, and it cannot be affected by long term water exposure, even at a temperature of up to 260℃ [4]. While comparing the physical and mechanical characteristics of PEEK and other CAD/CAM polymers, PEEK exhibits less moisture absorption and solubility. However, hardness values were comparable to those of PMMA.

Elastic modulus

  Modulus of elasticity of PEEK is 3.1Gpa which is similar to that of bone. This property places it in an advantageous position to be used in implant dentistry. PEEK can easily be modified by incorporating other materials like carbon fibres, thereby increasing the elastic modulus up to 18Gpa [13]. PEEK’s modulus approximates that of dentin and cortical bone. It could result in the reduction of stresses that are transferred to the abutment teeth and also to the cementation interface when compared to titanium and other materials. It is a very light material with low density (1.32 g/cm3) [14] (Table 2).

Material

Tensile strength (Mpa)

Youngs’s modulus (Gpa)

PEEK

80

3-4

CRF-PEEK

120

18

Cortical bone

104-121

14

PMMA

48-75

3-5

Dentin

104

15

Enamel

47.5

40-83

Titanium

954-976

102-110

Table 2: Tensile strength and elastic moduli of PEEK, CFR-PEEK PMMA and mineralized human tissue [10-12].

Flexural strength, wear resistance and tensile strength

  PEEK exhibits excellent wear resistance similar to the rate of resin materials when opposing natural teeth. The tensile properties of PEEK are identical to those of enamel and dentin, making it suitable for frame woks of restoratins [15].

  Density of PEEK is 1320 kg/m3 and thermal conductivity is 0.25 W/m K. However the mechanical properties of do not change during sterilization with steam, gamma radiation and ethylene oxide. Its Melting point is > 280°C and hence it shows resistance to deterioration during various sterilization procedures. Radiation also does not cause disintegration. It is an economical material and can easily be prepared in the mouth [3].

  Mechanical properties of the PEEK are similar to those of dentin and enamel. PEEK is rated as having superiority over metal alloy and ceramic restorations. CAD-CAM milled fixed prostheses made of PEEK shows high resistance to fracture (2354N). It exhibits higher resistance to fracture than lithium disilicate ceramic (950N) and zirconia (981-1331N). During mastication teeth are cyclically load with a force of 400 N. Because of the high fracture resistance, PEEK is used for making frame works. Publications of Stawarczyk., et al. refers to the high fracture resistance. Fracture related load was 1383 N for a 3-unit PEEK framework without veneering [2].

Biological properties

  Peek is highly indicated for allergic patients as an alternative material. Peek has low reactivity, nontoxicity, low solubility intraorally, and has one of the best biocompatibility profile [11]. PEEK implant is less stiff than Ti or Zr and is known to reduce the stress shielding effect. Because of this bone resorption is reduced and eventually cause increase in osseointegration [16].

Common forms of PEEK used in dentistry

  Two commercial brands of peek are generally used in dental and medical fields. PEEK-OPTIMA is used in the USA, whereas BioHPP is used in Europe. Both the products belong to the class of modified PEEK material with enhanced properties.

Peek-optimaTM

  PEEK-OPTIMATM developed in 1999 by Invibio Biomaterial Solution Co. It is a poly-aromatic semicrystalline thermoplastic material having a melting temperature of 3430C, crystallization peak of 160C and glass transition temperature of 1450C. Addition of carbon fibres improves properties such as hardness and creep resistance. PEEK-OPTIMATM is used in dentistry for making healing screws, temporary prosthetic abutments, precision attachments and implant-supported restoration frameworks [17].

BIOHPPTM

  Bredent GmbH specifically developed BioHPPTM (Bio High-Performance polymer) for dental applications. This PEEK material modification includes the addition of ceramic fillers with grain size between 0.3 - 0.5 mm. It is anti-allergic in nature and has excellent polishing properties, low plaque affinity, and good wear resistance. The small size of the grain is responsible for improved polishing properties and homogeneity. It has been used for telescopic restorations, implant abutments, secondary structures associated with a bar-supported prosthesis, and three to four-unit FPDs [12].

Surface modifications

Bioactive materials are incorporated to improve the bioactivity of PEEK.

Based on the particle size of these materials, PEEK composites are classified as

  1. Conventional PEEK
  2. Nanosized PEEK.

PEEK can be modified by two treatments.

The first is a chemical treatment, which is rarely used, and only two options are available:

  1. Wet chemistry modification.
  2. Sulfonation treatment.

Second is the physical treatments:

  1. Plasma modifications (such as nitrogen and oxygen plasma, ammonia/argon plasma, oxygen plasma, oxygen and argon plasma, methane and oxygen plasma, ammonia plasma, and hydrogen/argon plasma)
  2. Accelerated neutral atom beam (anab).

  For surface coating, materials such as titanium, gold, titanium dioxide, diamond-like carbon, tert-butoxides, and hydroxyapatite (HA) are used. Conventional PEEK composite, known as HA (hydroxyapatite), has good biocompatibility and osteoconduction. If HA content is increased, tensile modulus and microhardness improve but tensile strength and strain decrease [3].

Application of the surface coatings is done by the following techniques (Table 3).

Surface Modifications

Procedures

Materials

Surface topographical

Modifications

·         Acid etching

Sulfuric acid

·         Sandblasting

TiO2, alumina (Al2O3)

Coating

·         Plasma spraying

Hydroxyapatite (HA), titanium (Ti)

·         Spin coating





Nanosized HA crystals containing surfactants, organic solvent, an aqueous solution of Ca(NO3)2 and H3PO4

·         Electron-beam evaporation (EBE)

·         Plasma immersion ion implantation (PIII)

Ti; Silicate

Titanium dioxide (TiO2); calcium (Ca);

water (H2O); Argon (Ar)

Chemical modifications

·         Sulphonation

Sulfonate groups (-SO3-)

·         Amination

·         Nitration

Amine functions

Nitrate functions

Improving hydrophilicity

·         UV irradiation

·         Plasma gas treatment

UV-A light, UV-C light

Oxygen plasma

Incorporating with bioactive properties

·         Bioactive inorganic materials

Nano-TiO2(n-TiO2);

nano-fluorohydroxyapatite (n-FHA)

Table 3: Surface modifications of PEEK.

  Plasma immersion ion implantation and deposition, vacuum plasma spraying, aerosol deposition, arc ion plating, physical vapour deposition, electron beam deposition, cold spray technique, spin coating, ionic plasma deposition and radio-frequency magnetron sputtering [18].

Medical and dental applications

  PEEK emerges as an excellent alternative to metal implant components, especially in orthopaedic and traumatic applications because of the bio compatibility and bone like elastic modulus. An example is carbon fibre reinforced (CFR-PEEK) fixation plates which serve as an alternative to stainless steel bone plates. CFR-PEEK is used in cardiovascular applications, fracture fixation, femoral prosthesis in artificial hip joints, finger joint replacements, total disc replacement and interbody fusion cage in vertebral surgery, spinal and cranial applications (Figure 2a-4). Implants used in orthopedics usually make use of metals, polymers, ceramics and composites. Metals, such as Ni-Ti, Ti, Co-Cr, are used for permanent and temporary implants, but they have drawbacks such as allergies, high elastic modulus, the radiopacity of this metal causes artefacts in CT-Scans and it can cause stress on the peri-implant bone. The drawbacks of ceramics include low fracture toughness and high elastic modulus. In short, PEEK has emerged as the best possible biomaterial substitute for metallic implants and ceramics [3,4].

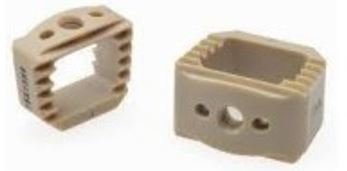

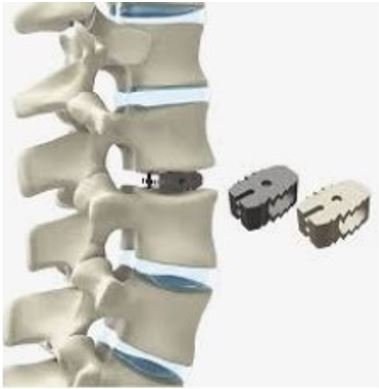

Figure 2a and 2b: Spinal implants of peek.
(Source: https://www.odtmag.com/contents/view_onlineexclusives/2017-01-05/a-porous-peek-solution-for-spinal-implants/.)

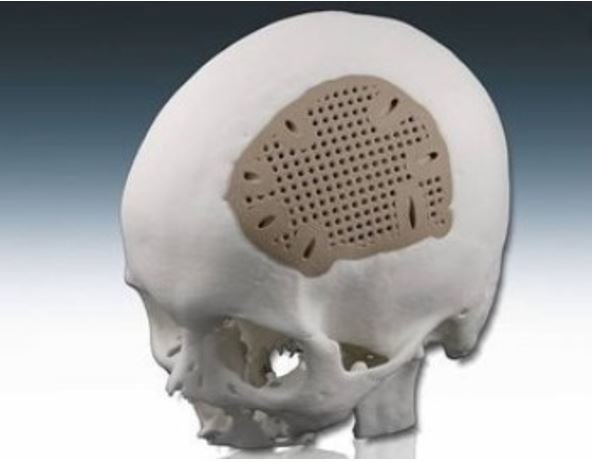

Figure 3: Cranial implants of peek.
(Source: https://www.designnews.com/materials-assembly/peek-cranialimplant-debuts-mdm.)

Figure 4: Major applications of PEEK in dentistry

PEEK implants

  In implantology, titanium is accepted as the first choice in standard treatments due to its highly favoured mechanical properties and biocompatibility (Figure 5a and 5b). Titanium has several advantages, and there are few disadvantages too, due to the gradient difference in the elastic moduli of a titanium implant and its surrounding bone. This may cause stress at the implant-bone interface during load transfer and which might result in peri-implant bone loss. Titanium has aesthetic problems too because it cannot transmit light and hence a dark shimmer of the peri-implant soft tissue may appear in thin biotype mucosa. If the lip position is very high during smile, this can initiate aesthetic problems. PEEK is biocompatible and has an elastic modulus of 3.6 GPa, which is closer to that of bone. If required the modulus can be modified to match that of the cortical bone (18 GPa) through carbon fibre reinforcement [9]. It can be used as a substitute to titanium implants and thereby it is possible to overcome the metallic characteristics. Because of the matching modulus, PEEK can reduce the stresses in bone and prevent subsequent bone resorption [19].

Figure 5a: PEEK dental implant and titanium implant

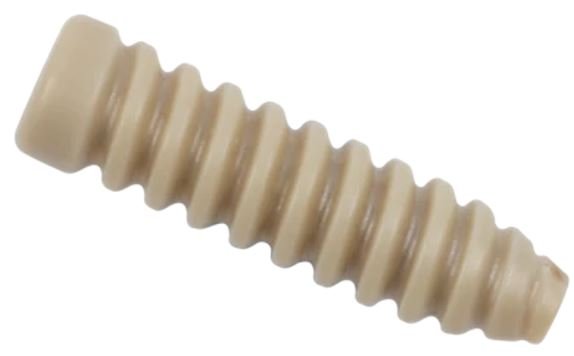

Figure 5b: PEEK Dental implant
(Source: http: windsorbeach.commedical.)

Implant abutments

  Abutments are made of different materials such as titanium, gold, zirconium and ceramics [7] (Figure 6). PEEK abutments are also in the use in recent times. In the case of implant screw breakage, PEEK screws are easier to be removed. However, it is demonstrated that PEEK abutments can withstand intraoral masticatory forces similar to titanium abutments. PEEK’s proven soft tissue behaviour supports the excellent recovery of gingival tissue. HAF has antibacterial properties which can prevent peri-implantitis and early implant failures [20].

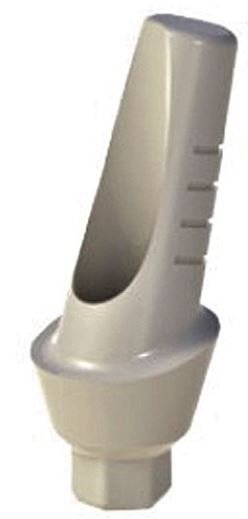

Figure 6: Implant abutment of peek.
(Source: https://www.medicalexpo.com/prod/bhi-implants/product-102429-952219.)

  Semicrystalline structure of PEEK is responsible for reducing fragility and hence deformation occurs rather than breakage. In one study, on prostheses made over PEEK abutments, prostheses remained intact and abutments only deformed. The functioning prosthesis could be salvaged by a replacement of the abutment [21]. Koutouzis., et al. in a randomized controlled clinical trial (RCT) concluded that there is no significant difference in bone resorption and soft tissue inflammation between PEEK and titanium abutments. Additionally, the oral microbial flora was similar to titanium, zirconia or PMMA abutments [22].

Peek as removable partial denture material

  PEEK is better suited for patients who have allergy to metal and who do not like the unpleasant metal display of the denture framework and retentive clasps. Besides, many of these polymers are heat resistant and hence amenable to autoclave disinfection [9].

  Tannous., et al. have compared prostheses made of chrome-cobalt and PEEK and observed that peek had lower retentive strength [23]. In combination with high-performance polymer, PEEK could be used as an alternative to metallic partials with replacing acrylic teeth [24] (Figure 7a and 7b). PEEK removable partial prostheses with distal extension reduces torque forces and the stresses on the tooth due to its elasticity. Colour Changes are minimal in PEEK compared to other prosthesis resin materials. A comparative evaluation on surface roughness and free surface energy of polishing methods used in the clinic and laboratory to PEEK, PMMA and a composite resin and found that lower surface roughness and free surface energy were obtained in PEEK [25].

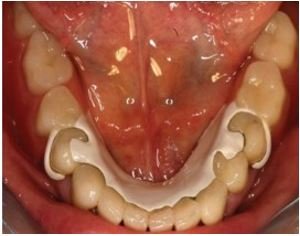

Figure 7a: RPD frame work made of PEEK

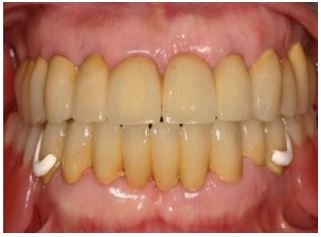

Figure 7b: PEEK clasps of RPD frame work (Source: https://www.guident.net/articles/general/POLYETHE RETHERKETONE-PEEK-AN-INNOVATION-IN-DENTISTRY.html.)

Fixed dental prosthesis

  PEEK metal-free crowns and bridges possess high biocompatibility and mechanical properties (Figure 8a and 8b). In comparison to ceramic and metallic materials, peek dental three unit bridge substructure did not weaken by in vitro ageing. In implant-supported prosthetic systems, crowns made of PEEK served successfully [26]. While comparing the biocompatibility profile, PEEK has higher rating than that of metal-based ceramics. However, some researchers suggested that it should be covered with veneer to ensure precision [27]. PEEK is considered as a light material and hence it may be a well suited alternative to chrome-cobalt prosthesis [20].

Figure 8a and 8b: Fixed prosthesis made of PEEK. 8b: PEEK Fixed Prosthesis.(Source: https://www.bredent.co.uk/wp-content/uploads/2017/02/BioHPP-2013.pdf.)

  PEEK restorations have adequate fracture resistance required to withstand masticatory forces exerted in the anterior (300N) and posterior regions (500-600N). No damage of frameworks or decementations were observed in prolonged chewing simulation in vitro studies equivalent to 5 years intraoral use [28].

Peek cad-cam milled partial dentures

  Using CAD-CAM, dental prostheses can be made chair-side. CAD-CAM designed polymethylmethacrylate (PMMA), and composite fixed dentures have superior mechanical properties compared to conventional fixed dentures [29]. PEEK can be used as an alternative to PMMA for CAD-CAM restorations. Three-unit PEEK FPD made by CAD-CAM has been shown to have a higher fracture resistance than pressed granular- or pellet-shaped PEEK prostheses (Figure 9). The fracture resistance of the CADCAM milled PEEK fixed dentures is higher than those of lithium disilicate glass-ceramic (950N), alumina (851N) [30], zirconia (981-1331N) [31]. The abrasive properties of PEEK are exceedingly good. Though the elastic moduli and hardness are low, the abrasive resistance of PEEK is competitive to metallic alloys [32]. Taking into consideration the abrasion resistance, mechanical properties and adequate bonding to composites and teeth, a PEEK fixed partial denture is expected to have a satisfactory survival rate.

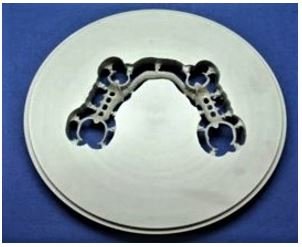

Figure 9: CAD CAM milled RPD framework.
(Source: https://www.dentalcadcamshop.com/production/blocks-forcerec-inlab/ernst-hinrichs/juvora-dental-peek.html.)

Resin-bonded and retained fdps/splints (RBR)

  PEEK is used for conservative RBR single-tooth restorations. Andrikopoulou., et al. presented a clinical case restoring the anterior maxillary area in a patient with a cleft lip/ palate. A peek framework coated with resin was fabricated to restore a missing lateral and which simultaneously splinted the remaining anterior teeth. The authors observed that the low modulus of PEEK, with the use of composite resin coating, provided superiority over ceramic and metal-ceramic restorations because occlusal forces are significantly dampened and reduced the risk of debonding [33].

Peek as maxillofacial prosthetic material (MFP)

  Restoration of maxillofacial defects with PEEK is not very common. Various alloplastic materials in conjunction with standard soft-tissue techniques have been used in the restoration of maxillofacial defects (Figure 10). PEEK exhibits an excellent combination of strength, stiffness and durability. Patients get excellent postoperative aesthetic and functional results without complications such as infections or extrusions. MFPs are usually printed. To 3D print PEEK, a 3D printer with an extruder that can reach 400°C, a chamber heated of 120°C, and a build plate that can heat to 230°C to remove the part and avoid warping. Because PEEK implants are customizable, easily workable, inert, and nonporous, they represent an ideal alloplastic material for maxillofacial reconstruction [34].

Figure 10: Obturator frame work.
(Source: https://www.quintpub.com/userhome/ijp/ijp_33_3_Tasopoulos_p333.pdf.)

PEEK orthodontic wires

  Because of the acceptable colour, PEEK can be used as an aesthetic orthodontic wire (Figure 11). PEEK orthodontic wires can provide orthodontic forces similar to titanium-molybdenum (TiMo) and nickel-titanium (Ni-Ti) wires [35].

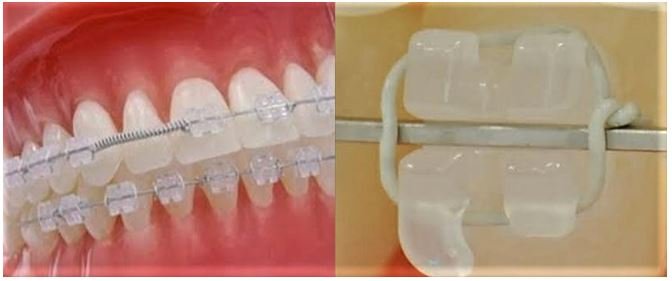

Figure 11: PEEK Orthodontic appliance.
(Source: https://www.orthomax.com.au/october-2017-product-of-themonth/.)

Veneered PEEK

  Standard Veneering System techniques can be used to fabricate restorations from the PEEK-based dental polymer substructure. If the veneer chips, PEEK substructure can allow repair without necessitating crown or bridge replacement [36].

Bonding of PEEK to composites

  One of the significant advantages of PEEK is that it can bind to light polymerised indirect composites. PEEK also requires holding elements and retentive abrasions similar to metal and ceramic resin-bonded prostheses [24]. The application of opaque material increases resistance to shear forces. Cleaning and roughening followed by processing with acetone, phosphate-based methacrylate linings or tribochemicals ensures good bonding between PEEK and composites. PEEK exhibit extreme resistance to most chemical substances. Rocha., et al. reported that sulfuric acid or a mixture of sulfuric acid and hydrogen peroxide could be used in roughening the PEEK surface. With sand blasting on the PEEK, the surface area and wettability can be effectively increased [37]. Stawarczyk., et al. reported that the use of Visio.link or Signum PEEK bonding significantly increased the bond between composite resins and PEEK [38].

Colour and radiolucency

  PEEK dental polymer allows clinical diagnostics by the imaging techniques such as X-ray, MRI and CT due to its radiolucent nature. It provides treatment through PEEK substructure without need for substructure removal and replacement [9].

Conclusion

  PEEK is emerging as a prosthodontic material which might replace many conventional materials. Due to its favorable chemical, mechanical and physical properties it is used in producing fixed and removable prostheses. In a relatively short span of time, peek became the material of choice for metal free restorations in medical as well as dental applications. Due to the high elastic modulus close to that of bone and dentin, there is an increasing use of the material in implantology. Due to the superior mechanical and biological properties of PEEK, it can be considered that in the future, prostheses made from polymer will have a place in routine applications and PEEK material will be used in dental post and core systems and the field of endodontics. However, more research has to be undertaken to validate clinical evidence.

Bibliography

  1. Rekow ED. “High technology innovations and limitations for restorative dentistry”. Dental Clinics of North America3 (1993): 513-524.
  2. Skirbutis G., et al. “A review of PEEK polymer’s properties and its use in prosthodontics”. Stomatologija 1 (2017): 19-23.
  3. Ma R and Tang T. “Current strategies to improve the bioactivity of PEEK”. International Journal of Molecular Sciences 4 (2014): 5426-5445.
  4. Kurtz SM and Devine JN. “PEEK biomaterials in trauma, orthopaedic, and spinal implants”. Biomaterials 32 (2007): 4845-4869.
  5. Karan M., et al. “Polyetheretherketone (PEEK) dental implants: A case for immediate loading”. The International Journal of Oral Implantology and Clinical Research 2 (2011): 97-103.
  6. Staniland P., et al. “Synthesis, characterization and study of the thermal properties of new polyarylene ethers”. Polymer 33 (1992): 1976-1981.
  7. Tekin S., et al. “Areas for use of PEEK material in dentistry”. International Dental Research 2 (2018): 84-92.
  8. Tabasum S., et al. “Sneak peek into peek polymer: An Innovation”. Journal of Applied Dental and Medical Sciences 1 (2018): 72-76.
  9. Razzaque A and Dhaded S. “An insight into a novel material: PEEK”. Research and Review in Prosthorestorative Dentistry01 (2017): 1-6.
  10. Alexakou E., et al. “PEEK High-Performance Polymers: A Review of Properties and Clinical Applications in Prosthodontics and Restorative Dentistry”. European Journal of Prosthodontics and Restorative Dentistry3 (2019): 113-121.
  11. Adler S., et al. “Compression moulding rather than milling. A wealth of possible applications for high-performance polymers”. Quintessenz Zahntech 39 (2013): 2-10.
  12. Rzanny A., et al. “BioHPP summary of results for material tests. Research Report. Jena, Germany University of Jena, Department of Materials and Technology (2013).
  13. Skinner M., et al. “Spherical indentation of tooth enamel”. Journal of Materials Science 16 (1981): 2551-2556.
  14. Lee W., et al. “Stress shielding and fatigue limits of poly-ether-ether-ketone dental implants”. Journal of Biomedical Materials Research Part B: Applied Biomaterials 100 (2012): 1044-1052.
  15. Wimmer T., et al. “Two-body wear rate of PEEK, CAD/CAM resin composite and PMMA: Effect of specimen geometries, antagonist materials and test set-up configuration”. Dental Materials Journal 32 (2016): 127-136.
  16. Lee WT., et al. “Stress shielding and fatigue limits of poly-ether-ether-ketone dental implants”. Journal of Biomedical Materials Research Part B: Applied Biomaterials 100 (2012): 1044-1052.
  17. Sinha N., et al. “The versatility of PEEK as a fixed partial denture framework”. The Journal of the Indian Prosthodontic Society 17 (2017): 80-83.
  18. Rahmitasari F., et al. “PEEK with Reinforced Materials and Modifications for Dental Implant Applications”. Journal of Dentistry4 (2017): 35.
  19. Wiesli MG and Özcan M. “High-performance polymers and their potential application as medical and oral implant materials: a review”. Implant Dentistry4 (2015): 448-457.
  20. Bechir ES., et al. “The Advantages of BioHPP Polymer as Superstructure Material in Oral Implantology”. Materiale Plastice3 (2016): 394-398.
  21. Balcı B. “Evaluation of Fracture Strength after Cyclic Fatigue Loading of Different Aesthetic Abutments. Master Thesis”. Bezmialem Foundation University Health Sciences Institute (2015).
  22. Koutouzis T., et al. “Comparative soft and hard tissue responses to titanium and polymer healing abutments”. The Journal of Oral Implantology 37 (2011): 174-182.
  23. Balcı B. “Evaluation of Fracture Strength after Cyclic Fatigue Loading of Different Aesthetic Abutments. Master Thesis”. Bezmialem Foundation University Health Sciences Institute (2015).
  24. Zoidis P., et al. “The Use of a Modified Poly-Ether-Ether-Ketone (PEEK) as an Alternative Framework Material for Removable Dental Prostheses. A Clinical Report”. The Journal of Prosthodontics7 (2016): 580-584.
  25. Heimer S., et al. “Surface properties of polyetheretherketone after different laboratory and chairside polishing protocols”. Journal of Prosthetic Dentistry3 (2017): 419-425.
  26. Karunagaran S., et al. “A review of implant abutments-abutment classification to aid prosthetic selection”. The Journal of the Tennessee Dental Association2 (2013): 18-23.
  27. Cavalli V., et al. “Effect of carbamide peroxide bleaching agents on the tensile strength of human enamel”. Dental Materials 20 (2004): 733-739.
  28. , et al. “Clinical Oral Implants Research 12 (2001): 174-178.
  29. Alt V., et al. “Fracture strength of temporary fixed partial dentures: CAD/CAM versus directly fabricated restorations”. Dental Materials 27 (2011): 339-347.
  30. Beuer F., et al. “The load-bearing capacity of all-ceramic three-unit fixed partial dentures with different computer-aided design (CAD)/computer-aided manufacturing (CAM) fabricated framework materials”. The European Journal of Oral Sciences 116 (2008): 381-386.
  31. Kolbeck C., et al. “Fracture force of tooth–tooth-and implant–tooth-supported all-ceramic fixed partial dentures using titanium vs customized zirconia implant abutments”. Clinical Oral Implants Research 19 (2008): 1049-1053.
  32. Zok F and Miserez A. “Property maps for abrasion resistance of materials”. Acta Materialia 55 (2007): 6365-6371.
  33. Andrikopoulou E., et al. “Modified PEEK Resin Fixed Dental Prosthesis for a young Cleft Lip and Palate Patient”. Journal of Esthetic and Restorative Dentistry 28 (2016): 201-207.
  34. Scolozzi P., et al. “Complex orbitofrontal-temporal reconstruction using computer-designed PEEK implant”. The Journal of Craniofacial Surgery1 (2007): 224-228.
  35. Maekawa M., et al. “Mechanical properties of orthodontic wires made of super engineering plastic”. Dental Materials Journal 34 (2015): 114-119.
  36. New material options for innovation in restorative and prosthetic dentistry-invibio biomaterial solutions.
  37. Stawarczyk B., et al. “Tensile bond strength of veneering resins to PEEK: Impact of different adhesives”. Dental Materials Journal3 (2013): 441-448.
  38. Taufall S., et al. “Fracture load and failure types of different veneered polyetheretherketone fixed dental prostheses”. Clinical Oral Investigations9 (2016): 2493-2500.

Copyright: © 2021 K Chandrasekharan Nair., et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
