Challenging Issues in Development and Integration of Modern Kinematics with Components and Images Obtained from Different Sources in Biomechanical Applications

Yevsey Gutman1*, Nadejda Krasnorutskaya2 and Gary Gutman3

1GEI Systems, Minneapolis, USA
2ITMO, Saint Petersburg, Russia
3Columbus State College, Columbus, USA

*Corresponding Author: Yevsey Gutman, GEI Systems, Minneapolis, USA.

Received: February 18, 2021; Published: : March 17, 2021

Citation: Yevsey Gutman., et al. “Challenging Issues in Development and Integration of Modern Kinematics with Components and Images Obtained from Different Sources in Biomechanical Applications”. Acta Scientific Dental Sciences 5.4 (2021): 102-113.

Abstract

  In spite of the existing and successful development of CAD/CAM methods for mechanical applications, the ability to model the motion of biomechanical systems still presents many challenges. The reason for those challenges is in complexity of the nature of components to be used for the projects, specifically based on the origin of the parts: where are they coming from. Depending on the biomechanical application it could be as many as three different sources for the parts to be included in to the “assembled” system. They are: (1) “standard” parts which can be designed using the conventional CAD system, (2) parts which can be obtained only through the process of surface scanning; and (3) components which are the product of CT scanning with volumetric property. An Advanced method is discussed here which can deal in case of biomechanical systems to address the weaknesses of the Standard Approach in use for purely mechanical systems.

Keywords: CAD/CAM; CT Scanning; CAD System; Modern Kinematics; Biomechanical Applications

Introduction

To analyze the kinematics of a mechanical system [9], as represented in a virtual environment, the researcher has to consider:

  • Environment for virtual development;
  • Format for representing components in the virtual environment;
  • Method to assemble the entire system out of the individual components;
  • A kinematics engine (Solver) to model the motion of the components;
  • A rendering technique to display the components in motion;
  • A user interface (UI) to allow the researcher to manipulate the system;
  • A set of tools to model specific motions based on parameters;
  • Ability to extract, monitor and preserve numerical data from specified motions.

The structure of this paper can be summarized as follows:

  • Features commonly used in kinematic models of mechanical systems;
  • Outline of the standard approach;
  • Disadvantages of the standard approach;
  • Critical features of the advanced method;
  • Implementation of the advanced approach.

We now compare how the standard and advanced approaches accomplish these tasks.

Subject selection

The study included 30 systemically healthy volunteers those who fulfilled the following inclusion criteria.

The standard approach

  The environment for virtual development in the standard approach is a commercial CAD package, such as SolidWorks, Alibre Design, Autodesk, PTC. These packages have efficient methods of creation most of “standard” components, such as those which can be virtually fabricated by CAD programs based on existing sketches and drawings with dimensions and other properties.

  By the well-established process of “mating”, these packages allow the user to assemble such components. Then, both individual and assembled components are rendered on a screen by proprietary software as a part of the same package As the user drags one of “independent” components across the screen to a new position, the motion of the system with the rest of parts is calculated and established for the dependent components by a “solver”.

  The advantage of these standard packages is that they require minimal expertise on the part of the researcher! Let us move to their disadvantages in the case of biomechanical systems.

Disadvantages of the standard approach

  The components of a biomechanical are unlike the components of a typical mechanical system, such as an automobile engine or machine tool building products: They are difficult to specify analytically due to the complex nature of the origin.

In a biomechanical system, the components come from the following three sources:

  • Standard mechanical components, which can be created in form of “solid body” parts;
  • Components obtained from real biomechanical specimens, such as teeth, knees, by surface scanning;
  • Components obtained from real biomechanical specimens, such as tumors, bones, by CT methods.

The first group of parts can be handled by any standard CAD packages; the other two require richer data structures.

Performance degradation of a standard solver for biomechanical systems

  Even if the standard packages have a work-around to include these more complex classes of components, the native solver built in the standard CAD/CAM packages, experiences serious degradation in performance, as evidenced by a decrease in calculation and rendering speed.

Lack of effective user interface, parameter control and monitoring

  In the standard CAD/CAM packages [12], it is at best awkward to associate a parameter to the relative position of a component (outside of usage of mouse). This makes it difficult to numerically monitor and control the state of a complex system and even more difficult to pass this state to any other process for analysis. Except in the case of systems with one degree of freedom, where the state of the system can be changed by simply dragging a component, it is awkward to make the system perform to specified parameters. In particular, the user lacks an effective interface that can control the system, except in the simplest of cases. Thus, it is difficult to efficiently test the system in realistic situations.

Advantages of the advanced approach

The advanced approach remedies the weakness of the standard approach by:

  • Taking account of the complex nature of components in biomechanical systems;
  • Providing a controlled solver specifically adapted to application;
  • Effective UI, parameter control and monitoring, including joystick and haptic devices.

  The advanced approach utilizes a sophisticated interface [11,13,14] between the end user and the model on the screen, with screen handling in the advanced approach done by a home-made module to render images. This is successfully achieved for models where all information about the kinematics of the entire mechanism is known. For each assembly a displacement model must be developed, requiring intimate knowledge of the kinematics of the model and experience developing displacement models for multi-DOF systems. A comparison of the two approaches from the point of view of the end-user should include their experience in:

  • Standard CAD;
  • Microsoft development system;
  • Development in visual basic or visual C;
  • Knowledge and experience in DirectX foundation;
  • Point cloud applications;
  • Volumetric scanning data with DICOM format;
  • Mesh manipulation in different forms;
  • Flexibility of interface with the model and the depth of analysis required;
  • Knowledge in advanced kinematics, in particular: displacement models;
  • Type of mechanism to be displayed and number of DOF;
  • Required throughput as a number of models to be completed at a given time;
  • Complexity of the project, including the source and the nature of the parts to be used.
Implementation of the advanced approach

So, as it was mentioned above, there are three major classes of components in biomechanical systems:

  • Solid parts: We are going to utilize the “standard” approach when we have to design solid parts using any popular programs based on CAD packages, like SolidWorks. That allows to create a part (model) based on its dimensional property including orientation of the part relative to the local coordinate system. To preserve the outer surface (skin) of the part, this model is saved in mesh form with an STL extension. This conversion and format are very common in computer graphics and is a standard option for every CAD package.
  • Parts obtained by surface scanning: Here the model cannot be developed by CAD process: The geometry is analytically undetermined. The process of surface scanning might be the only way to generate the model. The result of the scanning is obtained in the form of a point cloud. This is converted into STL format by existing software, such as 3DReshaper or Geomagic [14].
  • Volumetric scanning: When the model is extracted from a volumetric image obtained by a CAT scan in the form of DICOM files, a package such as Anatomage® software [4] is used to convert selected features within the DICOM file to an STL file [6] based on the desired density.

In the advanced approach, models for all components are represented in the common STL format (Figure 1) regardless of their origin.

Figure 1: Flow diagram for parts developed by different methods.

Having represented the components in a common format, we can consider the environment in which those models should be assembled for virtual articulation.

Based on our experience and requirements for the performance to be achieved during simulation, we conclude that the best environment is the DirectX package by Microsoft [11].

  This package has not just an efficient way to deal with rendering components on the screen, but also a full library of function calls to solve many graphics issues. It allows the developer to run a collision detection task between two meshes in real time without any performance degradation. And it is well “connected” to the hardware of the system in form of video card such as NVIDIA through the Windows OS and graphic drivers.

  The only “side effect” of using DirectX software is in the requirement to present those components/meshes obtained for each model in DirectX format known as dot x (.x). That requires one more step to convert all model files so far presented in STL format to .x format (Figure 2). That conversion has been done using a very efficient PolyTrans program from Okino Corporation [10].

Figure 2: Conversion from STL to DirectX format.

Demonstration of component handling in the advanced approach

We now illustrate these steps by examples of components generated in different environments.

  First, we are going to start from the part or better to say a group of parts or sub-assembly which can be developed using a CAD system where each component has been created by a standard CAD package. In general, DirectX has the capability of developing those parts within its own system but this process is more efficient in standard CAD packages environment. That is why, all “standard” (conventional parts) are created by CAD systems. In our example, since it demonstrates an assembly of a fully adjustable articulator, the following parts: base, some moving parts to mount the upper and lower models, facebow and other “standard” components are made by Solid Works (Figure 3) and then saved in STL format. Some of those parts are discussed in figure.

Figure 3: Sample of parts developed by standard CAD.

  To display components on the screen, a front panel with all man-machine controls and dialogs has been developed (Figure 4). This panel is based on microsoft visual studio IDE and visual basic.

Figure 4: Fully adjustable articulator displayed on the front panel (no models displayed).

  System requirements dictate that a DirectX SDK is installed prior to any development. By pushing a “Run” button from the main menu, we put the program in to an indefinite “play” loop which can be terminated by selecting a “Stop” option. Within this loop we have to display all parts and components on the screen in proper positions and perform the rendering process.

Sub PlayGame ()

Do While GameActive

If JoyStickModeSwitch Then JoyCallBack

MyDX8Graph.view Vwx, Vwy, Vwz               'View point: Vx, Vy, Vz

MyDX8Graph.Camera Cwx, Cwy, Cwz ‘Camera point: Cx, Cy, Cz

MyDX8Graph.changeLight LPosition            'twx, twy, twz ': Tx, Ty, Tz

MyDX8Graph.Render

DoEvents

Loop

EndGame

Unload Me

End Sub

  For best results the system uses a multi-buffer technique where one buffer is used to display the results and the other is to prepare the screen with the (part of DirectX setup process).

  The final critical issue is to present the motion of the parts as an assembled mechanism with mating conditions which reflect its kinematics: to develop a displacement model of the system.

Providing an advanced solver specifically adapted to biomechanical systems

  The advanced approach fine tunes the kinematics of the model of a biomechanical system to the needs of the components. This is done by adapting the displacement method which uses extended rotation and translation matrices to develop the evolution of the six DOF of a mechanical system in three-dimensional space to create the solver engine. To do this, the Advanced Approach must establish local and world coordinates of components of the biomechanical system which are manipulated by the displacement method using the specific kinematics of the system.

  World coordinate system in DirectX: In DirectX, a part to be displayed on the screen goes through a rendering process using a matrix to transform world coordinates. This matrix is applied to all parts. It has six parameters: x, y, z, α, β, γ. Using those six parameters we display a part in different positions and orientations on the screen relative to the world coordinate system.

  We consider those six parameters as six DOF for each part which is modeled in DirectX space. If those DOFs are set to zero, the world matrix is the identity matrix, and the part is displayed with its local (part) coordinate system on the top of world coordinate: The part looks as it would be depicted in its original (local) coordinate system.

  For any change in DOF parameters, the matrix of world coordinate transformation established for each individual part is recalculated and this transformation is applied to the part for the proper placement on the screen. To use the world matrix efficiently it is important to properly establish the local coordinate system during creation of each part. Let us consider it now.

  Local coordinates for solid parts: It is relatively easy to establish a local coordinate system for the model developed using a CAD package as for a solid part. This local coordinate system is preserved in the process of saving it in STL format and then later in a .X mesh file. If the first look at the model in DirectX environment is not what you have planned for, you can go back to the CAD program and insert a local reference coordinate system where it is more practical, repeating the process of saving this model in STL and then .X.

  Local coordinates for unconventional parts: This where the Advanced Approach shows its advantage! The system considered for articulation in this project contains other parts (Figure 5) which cannot be produced (or produced efficiently) by CAD system but can be established by scanning of them (both jaws models) on a surface scanning device.

Figure 5: Upper and lower models in mesh form.

  Those models (Figure 6) are obtained from the scanner in form of Point Clouds. In our case here they are the models of a lower and upper jaws. The process of obtaining them is described above: a) scanning the models, b) collecting the Point Cloud for each part, c) converting it into an STL mesh, d) converting STL into the DirectX mesh with extension X.

Figure 6: Scanners developed by laser design corporation and parts for scanning.

  So, with those two models included into the rendering engine the front control panel would look like (Figure 7). For those parts generated by point cloud the information about the local coordinate system (the origin of the part) is as critical as for the standard parts.

Figure 7: Articulator shown with point cloud parts (upper and lower jaws).

  Parts generated from point clouds: The task of establishing the local coordinate system for parts obtained from a point cloud is more complicated due to the fact that we do not know the coordinate system of the scanner. We circumvent this as follows.

  The entire Cloud is recorded in this coordinate system. To establish (identify) the local coordinate system we have to use a calibration fixture with known geometry and dimensions which would be mounted on the “table” of the scanner and collect the point cloud for this model.

  Calibration process for point cloud parts: The goal of this task is to establish/recover the local coordinate system associated with the part during the scanning procedure. The local coordinate system during the scanning is technically unknown and depends on the design and configuration of the scanning device. If we take the part “as is” with its original (but unknown) local coordinal system we then display the point cloud (the mesh represented this cloud) under the world system within DirectX rendering loop. And we might be surprised to find the part not exactly where you would expect to see it (Figure 8). That is happening due to the “wrong” orientation of the model’s coordinate system.

Figure 8: Specimen on lower arm.

  To fix this problem, we have to use a special fixture which can be mounted on the “table” of the scanner. The fixture can be attached to the scanner through a magnetic base for easy and quick removal. This fixture (let us call it FIX for short) has to be scanned and then, its point cloud be converted to a FIX.STL and finally to FIX.X file. The virtual display of this fixture on the same arm in DirectX will look like on figure 9.

Figure 9: Before calibration.

  As it can be seen and explained from the figure 8 and 9, the model for FIX.X does not have the right coordinate system. But since we know all dimensional parameters of the model with high precision we can “recover” the right coordinate system for the FIX model so it can be used for the rest models developed from the Point Cloud on this scanner.

  To achieve that, first, we have to create a “probe” function using a set of standard DirectX utility toolbox. This function allows us to probe (digitize) any surface (mesh) within DirectX environment by placing the cursor on/over the top of the surface (Figure 10) which we would like to get coordinates of point from. Secondly, we have to develop a program called “fixture calibration” to establish the missing coordinate system. The control panel developed for this procedure is shown on figure 11.

Figure 10: Process to calibrate point cloud coordinate system.

Figure 11: Control panel used to conduct the calibration.

  The algorithm for this procedure is based on establishing the position and orientation of three planes which are the three sides of the model FIX. To define them we select three points on each face (side of the model) by probing them with a virtual mouse. The first plane X has three points designated as Point1 or P1 for short, P2 and P3 (Figure 10 and 12).

Figure 12: Points on virtual model during calibration.

  By pressing the button “Get Plane” we establish the position of Plane X. Repeating this step for Plane Y and Plane Z (three points on each face: P4, P5 and P6 for plane Y and P7, P8 and P9 for plane Z) and pushing the button “Get Plane” after each face we will establish all three planes and as a result the corner point P of the fixture model. This corner point P is the intersection of all three planes (Figure 13). The next two steps will determine the origin of this local coordinate system (press button “Get Origin”) and then “Cal” to complete the calibration procedure (Figure 14).

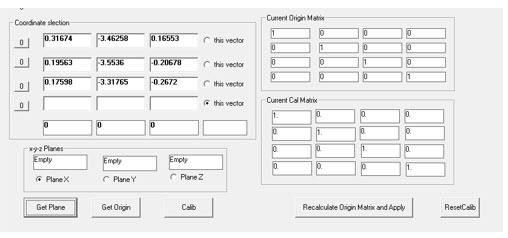

Figure 13: Calibration panel after the first plane X is established.

Figure 14: Final view of control panel before re-calibration of the system.

By applying the calibration matrix to the original model (press “Recalculate Origin Matrix and Apply”) we correct the position of the model in DirectX environment.

  So, the matrix we have established during this procedure will be used to convert every image of the mesh obtained from the point cloud on this scanning device. In our case, after replacing the fixture with the real part and the right (corrected) local coordinate system we have on figure 15 and 16.

Figure 15: Fixture with the right coord system.

Figure 16: Part on the arm after calibration.

  These improvements provide the advanced approach with an implementation of the displacement method for biomechanical systems which effectively give is a superior solver engine which render it superior to the standard approach for such systems.

  Parts generated from CT scanner: Those parts are represented in DICOM format and by selecting a desired value of density we can create a “part” (Figure 17) which can be saved in STL format.

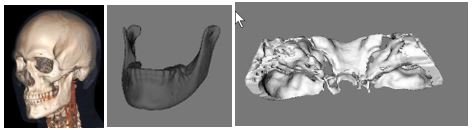

Figure 17: Images obtained during CT scan in DICOM environment.

  The same issue, as for parts obtained from Point Cloud, we have to face here about establishing the local coordinate system, but the imaging software (Figure 18) comes with utility which can do it interactively right on the model in DICOM environment.

Figure 18: CT Image with utility tools (from Anatomage package).

  Volumetric scanning: Manipulating the images of the Virtual models of bio-mechanical samples on the screen, we are dealing with the digital representation of those models, more precisely, with its surface images or mesh images. That means actually that we don’t know much about anything inside the model or under the “skin”. To look “deeper” a CT scans technology known to covers many different test/procedures such as scanning parts of the body can be used. It is based on new Cone Beam technology and called CBCT. Usually, it is a relatively small device designed with particular interest for dentistry, very fast (takes about 20 secs. per scan) and it is less harmful for the environment and patient (1/17 of a regular CT dosage of X-ray radiation).

To extend the surface scanning process to volumetric models obtained from CBCT scans the following steps are required:

  1. Perform a single CBCT scan to obtain the volumetric information for bio-mechanical “part” such as jaw including the area surrounding TMJ (fossa and condyles). This scan should be done in the “centric relation” using a splint to separate the teeth.
  2. Separate the DICOM volumetric information into two parts:
    1. DICOM file which contains only cranial volumetric information with specific details for fossa on both sides;
    2. DICOM file which contains only volumetric information for the mandible, including both condyles.
  3. Convert these two separated images of cranial and mandible into STL format.

In steps 2 and 3, the DICOM information is separated into two images and converted into the STL format using digital imaging software such as “Create Model”.

  Fusing STL and DICOM images: During this process, the two images obtained from the CBCT scans and converted to the STL format should be fused/mated with the corresponding STL image of the models obtained during a surface scanning of casts. Using a set of simple fixtures and "similar" features shared between the corresponding parts, it can be considered as a superimposing process by which the mesh of the lower cast is laid over the image of the mandible (Figure 19) obtained from the CT scan as well as the upper jaw laid over the maxilla area of the cranial image.

Figure 19: Articulation of two fused models: STL (from point Cloud) and DICOM.

  Effective user interfaces: The advanced approach provides flexible user interfaces through the DirectX environment: One of the features which makes use of DirectX very efficient and productive for special applications is in its interface with the model in practically real time. This very flexible interaction between the user and the model on the screen can be achieved with ability to use a tool box with components such as scroll bars, digital meters, graphs and many other controls with are the part of Microsoft IDE. That includes Visual Basic and Visual C++.

  The other feature of DirectX which separates this approach from traditional modeling of the kinematics is the ability to use USB peripheral devices like joystick for interaction with the model.

  Effective parameter control and monitoring: The Advanced Approach provides flexible effective parameter control and monitoring through the DirectX environment and the consistent use of kinematics based on the displacement method, which is parameter driven through the six world and local DOF: The same mechanism can be depicted in the DirectX environment implementing the Advanced Approach by utilizing the parts developed within SolidWorks individually and then saved in STL format. After the STL version is obtained, those parts, as we discussed it above, should be converted into DirectX format. At this point we are ready to use the DirectX approach. It is done by placing all parts within the indefinite loop where they are included in assembly and would be rendered and displayed based on the world matrix for each part.

  The world matrix for each part is modified as a product of matrix representing the local part coordinate system and the world DOF system. Important note here: in DirectX approach we have to develop a full kinematics of the mechanism and control the displacement model of the system internally. It is done by a subroutine running on the background where the parameters determining the position of each part are calculated. Then the parameters of motion are sent to the rendering engine by a common block determined in the global memory of the program.

The programs where the kinematic engine is developed are the subroutines which can be written by any engineer familiar with kinematics and the visual basic or visual C languages.

These subroutines have forms with control panels where any controls out of Microsoft IDE toolbox can be utilized, such as scroll bars, meters, graphs.

Private Sub SliderHinge_Change ()

 Static Cnstx0 As Single

Static Cnsty0 As Single

Static Cnstz0 As Single

Static fLx0 As Single

Static fLy0 As Single

Static fLz0 As Single

Static valuex As Single

Static aa As Single

valuex = SliderHinge.Value / 1000

aa = Val(valuex * 3.1415 / 180#)

'''Label1.Caption = Format (aa, "0.0000")

MainFrm.lblDOF(1). Caption = Format (aa, "0.0000")

fLx = aa

Cnstx0 = Cnstx

Cnsty0 = Cnsty

Cnstz0 = Cnstz

fLx0 = fLx

fLy0 = fLy

fLz0 = fLz

Call MyDX8Graph.SetDOFMatrix(Cnstx0, Cnsty0, Cnstz0, _ fLx0, fLy0, fLz0)

Call MainFrm.DoRefresh

End Sub

Conclusion

  The advanced virtual articulation method discussed here is developed on principals of an open architecture system for IDE, DirectX, SolidWorks and etc. It allows researchers to develop new/progressive ideas in the areas of graphic representation for bio-mechanical applications, as well as for any standard engineering packages (such as FEA) to be interfaced with as a plug-in module.

  The package can be used as a stand-alone system combined with the existing engineering CAD/CAM packages through a file system and be used as a QC digital tool box or can be integrated into a CAD to take the full advantage of its analysis capability during design step to reduce a number of iterations to develop the best product.

  Combination of STL and DICOM images driven by the same kinematics allows researchers to see the interaction between the internal parts of the joint without use of invasive methods under “in vivo” process and with a minimum exposure of X-ray.

Bibliography

  1. “Apparatus and Method For Recording of Mandibular Movement”, US Patent 8,382,686.
  2. ”Apparatus and Method For Replicating Mandibular Movement”, US Patent 8,021,149.
  3. Miyazaki T., et al. “A review of dental CAD/CAM: current status and future perspectives from 20 years of experience”. Dental Materials Journal1 (2009): 44-56.
  4. In Vivo Dental Volumetric Imaging Package by Anatomage, Inc, San Jose, CA.
  5. Mustra, Mario; Delac, Kresimir Grgic Mislav. Overview of the DICOM Standard. ELMAR, 2008. 50th International Symposium. Zadar, Croatia (2008): 39-44.
  6. Stereolithography Interface Specification, 3D Systems, Inc. (1989).
  7. The use of cone-beam computed tomography in dentistry”. The American Dental Association Council on Scientific Affairs 143.8 (2012): 899-902.
  8. P Mildenberger and M Eichelberg E Martin. "Introduction to the DICOM standard". European Radiology4 (2002): 920-927.
  9. Y Gutman and J Keller. “Jaw Tracking Device and Methods of Analysis of Patient’s Specific TMJ Kinematics”. ACTA Scientific Dental Science10 (2018).
  10. The Industry Standard for 3D CAD/Animation/NURBS/Skinning/Skeleton Translations, Viewing and Scene Composition, Okino_Polytrans_Brochure41.pdf., Okino Corporation, 3397 American Drive, Unit # 1. Mississauga, Ontario, L4V 1T8.
  11. A Sherrod. “Ultimate Game Programming with DirectX, Second Edition, A part of Course Technology, Cengage Learning (2009).
  12. R Shih. SOLIDWORKS 2018 and Engineering Graphics: An Integrated Approach 1st Edition, SDC Publications (2018).
  13. L Powers and M Snell. “Microsoft Visual Studio 2015, SAMS, Copyright 2016 by Pearson Education, Inc (2016).
  14. Raindrop Releases Geomagic Studio 4.1. Geomagic Corporation, Research Triangle Park, N.C, June 4 (2001).

Copyright: © 2021 Yevsey Gutman., et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.



News and Events


  • Certification for Review
    Acta Scientific certifies the Editors/reviewers for their review done towards the assigned articles of the respective journals.
  • Submission Timeline for Upcoming Issue
    The last date for submission of articles for regular Issues is October 20, 2021.
  • Publication Certificate
    Authors will be issued a "Publication Certificate" as a mark of appreciation for publishing their work.
  • Best Article of the Issue
    The Editors will elect one Best Article after each issue release. The authors of this article will be provided with a certificate of “Best Article of the Issue”.
  • Welcoming Article Submission
    Acta Scientific delightfully welcomes active researchers for submission of articles towards the upcoming issue of respective journals.
  • Contact US






    Warning: include(footer.php): failed to open stream: No such file or directory in /home/emailacta1/public_html/ASDS/ASDS-05-1071.php on line 442

    Warning: include(): Failed opening 'footer.php' for inclusion (include_path='.:/opt/alt/php56/usr/share/pear:/opt/alt/php56/usr/share/php') in /home/emailacta1/public_html/ASDS/ASDS-05-1071.php on line 442
